Class Number: M-501 to M-554
Number Built: 54
Year in Service: 1999 |
Power Type: Electric
Service Type: Underground
Gauge: 1435 mm |

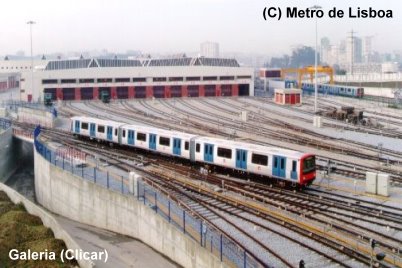

Pictures Gallery |
|
 |
 |
|
Technical Data
| Measures: |
|
| Weight: |
| Tare (Car) |
29,3 t |
| Tare (Trailer) |
18,8 t |
| Maximum Load (M) |
40,6 t |
| Maximum Load (R) |
31,2 t |
| Capacity (Car): |
| Seating Places |
38 |
| Standing Places (6 passengers / m2) |
127 |
| Total |
165 |
|
| Dimentions: |
| Lenght (Car) |
16.224 mm |
| Lenght (Trailer) |
16.058 mm |
| Width |
2.789 mm |
| Height |
3.523 mm |
| Gauge |
1.435 mm |
| Capacity (Trailer): |
| Seating Places |
44 |
| Standing Places (6 passengers / m2) |
141 |
| Total |
185 |
|
| Performances (C+C): |
| Maximum Speed |
72 kms/h |
| Maximum Acceleration |
1,3 m/s2 |
| Medium Deceleration |
1,2 m/s2 |
| Emergency Deceleration |
1,4 m/s2 |
| Performances (C+T+C): |
| Maximum Speed |
72 kms/h |
| Maximum Acceleration |
1,0 m/s2 |
| Medium Deceleration |
1,0 m/s2 |
| Emergency Deceleration |
1,4 m/s2 |
|
| Brakes: |
| Service Brakes |
Electrodynamic (Rheostatic or Regenerative) |
| Emergency Brakes |
Pneumatic + Electromagnetic |
| Stopping Brakes |
Electropneumatic |
| Parking Brakes |
Spring Type, Incorporated in a Brake Cylinder |
| Transmission: |
| Redutor com dois andares de Transmission |
| Engrenagens cilíndricas |
| Veio oco com andares elásticos |
|
| Traction System: |
| Tension Ondulator with GTO |
| Three-Phase Asyncronous Motor with Double Squirrel Cage |
| Electrical Characteristics: |
| Feeding Tension |
750 V dc |
| Power Instalada (per car) |
4 x 175 kW |
|
| Body: |
Self-Supporting Stainless Steal with High Strength Steel Top |
| Dispositivo anti-encavalitamento nas extremidades |
| Sistema de interligação com passadiço semi-rìgido |
| Fole Exterior e Revestimento interior em Alumínio e GFK |
| Revestimento interior em Melaminium e resina fenólica |
Portas – tipo ladeante, de comando electrónico |
|
| Bogie: |
| Type |
Twin-Motor |
| Primary Suspension |
Rubber, MEGI type |
|
| |
| Secundary Suspension |
Rubber Pneumatic Springs |
| Transmission Ratio |
1 : 7,45 |
|
|
| Number Built |
54 |
Builder |
Sorefame / Bombardier |
| |
|
In Service Date |
February 1, 1999 |
|
