Class Number: M-101 to M-156
Number Built: 56
Year in Service: 1983/89 |
Power Type: Electric
Service Type: Underground
Gauge: 1435 mm |
Pictures Gallery |
|
 |
 |
|
Technical Data
| Measures: |
|
| Weight (per car): |
| Tare |
30,8 t |
| Maximum Load |
42,3 t |
| Capacity: |
| Seating Places |
40 |
| Standing Places (6 passengers / m2) |
124 |
| Total |
164 |
|

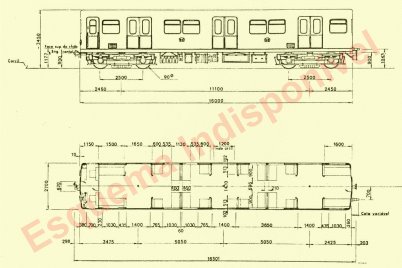

| Dimentions: |
| Lenght (entre Travessas de Topo) |
16.000 mm |
| Width |
2.790 mm |
| Height |
3.534 mm |
| Gauge |
1.435 mm |
| Electrical Characteristics: |
| Feeding Tension |
750 V dc |
| Power Instalada (per car) |
2 x 241 kW |
|
| Performances: |
| Maximum Speed |
72 kms/h |
| Maximum Acceleration |
1,1 m/s2 |
| Medium Deceleration |
1,0 m/s2 |
| Emergency Deceleration |
1,4 m/s2 |
|
| Brakes: |
| Service Brakes |
Rehostatic |
| Emergency Brakes |
Pneumatic + Electromagnetic |
| Stopping Brakes |
Electropneumatic |
| Parking Brakes |
Spring Type, Incorporated in a Brake Cylinder |
|
| Traction System: |
| Conventional Type |
| Serial Excited DC Motors |
| CHOPPER Excitation Circuit in Rehostatic Braking |
|
| Body: |
Self-Supporting Stainless Steal with High Strength Steel Top |
Portas – de correr por dentro, de comando pneumático. |
|
| Bogie: |
| Type |
Single-Motor |
| Primary Suspension |
Rubber Springs |
|
| |
| Secundary Suspension |
Pneumatic Springs |
| Transmission Ratio |
1 : 5,95 |
|
|
| Number Built |
56 |
Builder |
Alsthom-MTE / Sorefame |
| In Service Date |
1983 - 12 Units,
1984 - 32 Units,
1988 - 8 Units,
1989 - 2 Units |
| Withdrawn Date |
11/07/2002 (2 Units Restaured and Preserved for exposition) |
|
