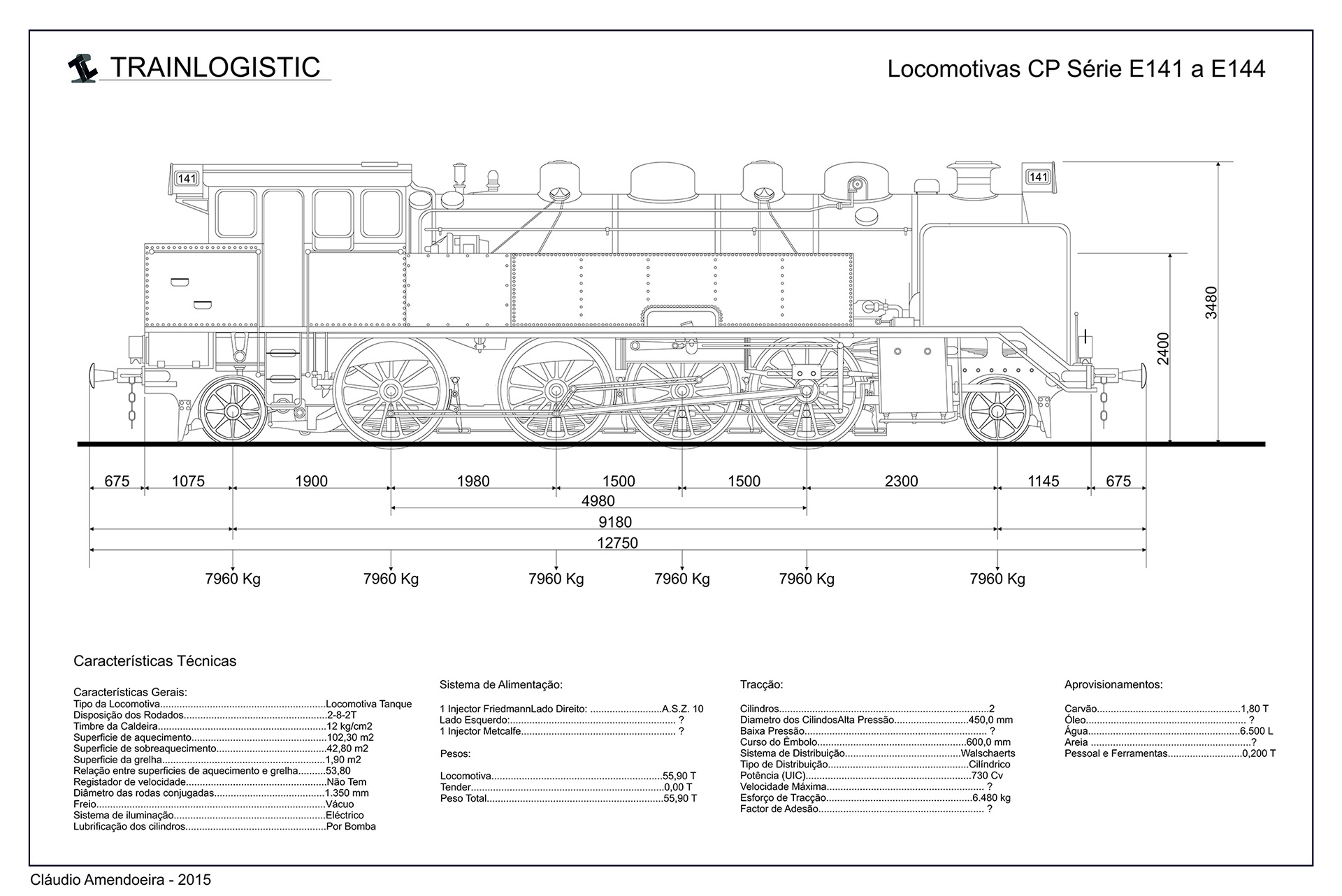

| Specifications: |
| Locomotive Type |
Tank Locomotive |
| Wheel Arrangement |
2-8-2T |
| Boiler Pressure |
12 kg/cm2 |
| Heating Surface |
102,30 m2 |
| Overheating Surface |
47,80 m2 |
| Grid Surface |
1,90 m2 |
| Heating and Grid Surfaces Ratio |
53,80 |
| Speed Recorder |
Doesn't have |
| Coupled Wheels Diameter |
1.350 mm |
| Brake |
Vacuum |
| Lighting System |
Electric |
| Cylinder Lubrication |
Pump |
|
| Traction: |
| Cylinders |
2 |
| Cylinder Bore |
High Pressure: 450,0 mm
Low Pressure: --- mm |
| Stroke |
600,0 mm |
| Valve Gear |
Walschaerts |
| Distribution Type |
Cylindric |
| Power (UIC) |
730 hp |
| Maximum Speed |
--- |
| Tractive Effort |
6.480 kg |
| Adhesion Factor |
--- |
| Injection System: |
| 1 Friedmann Injector |
Right Side: A. S. Z. 8
Left Side: --- |
| 1 Metcalfe Injector |
|
|
