| Mechanical Parts: |
Krauss Maffei |
| Electric Equipment |
Siemens |
| Transmission: |
Siemens |
| Brake: |
Knorr |
_____________________________________
. |

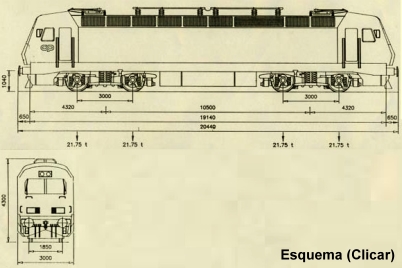

| Locomotive Type |
LE 5600 |
| Power Output (Wheels) |
7.620 hp |

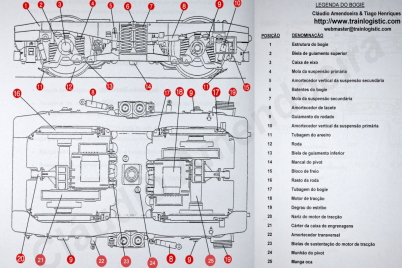

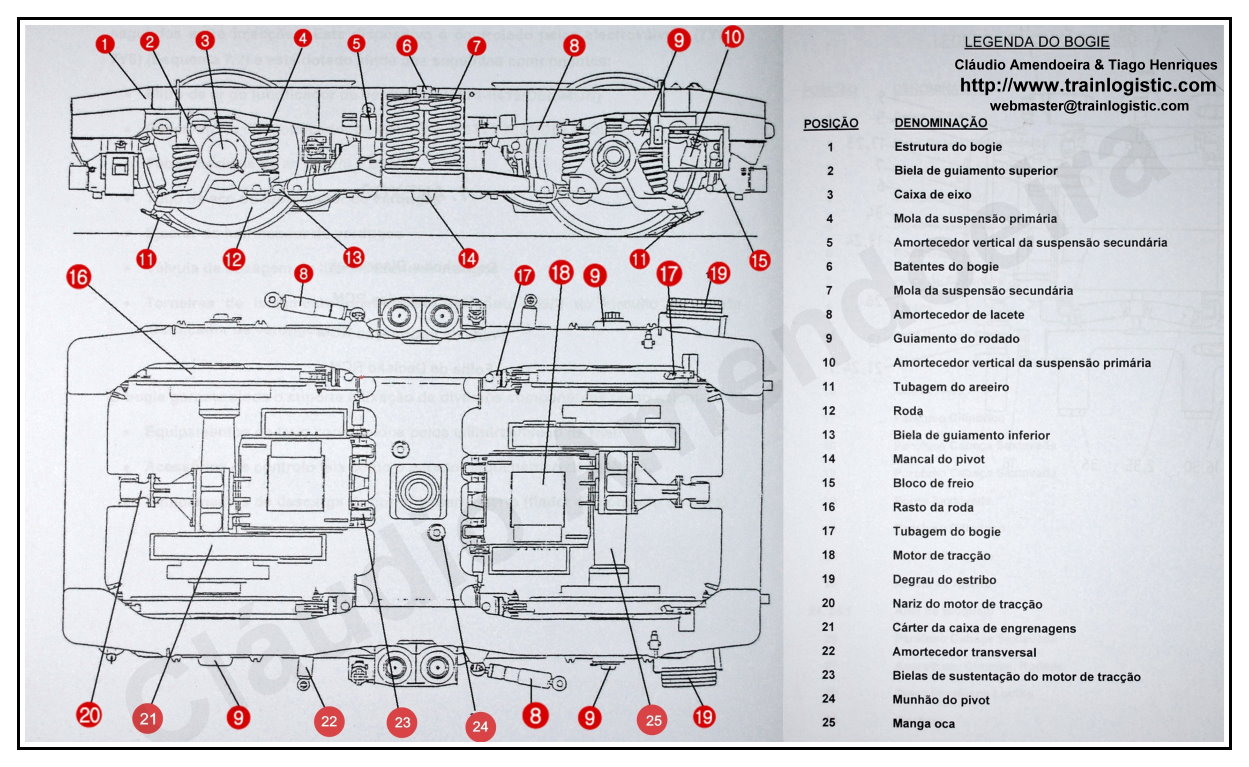

| Wheel Arrangement |
Bo' Bo' |
| Wheel Diameter (new) |
1.250 mm |
| Driving Cabs (Number) |
2 |
| Air Brake |
UIC |
| Dynamic Brake |
Rheostatic and Regenerative |
| Sanders (number) |
8 |
| Dead Man's Switch |
Deuta |
| Multiple Working |
up to 2 |
| Wheel Flange Lubrification |
Delimon |
| Speed Recorder |
Convel + Sibas 16 |
_____________________________________
. |
| Maximum Speed |
220 Km/h |
| Maximum Tractive Effort |
33.600 Kg |
| Continuous Tractive Effort |
25.500 Kg |
| Continuous Tractive Effort (Speed) |
70 Km/h |
| Tractive Effort at Max. Speed |
9.400 Kg |
| Maximum Effort (Wheels) |
17.350 Kg |
| Corresponding Speed (Rheostatic) |
10 a 71 Km/h |
| Corresponding Speed (Regenerative) |
10 a 118,6 Km/h |
|
| Builder and Type |
Trafo Union and Motra Efat 6844 |
| Main Transformer |
25 KV - 6.650 KVA |
| Traction Transformer |
6 x 1.500 V - 6 x 975 KVA |
| Climatization |
1.500 V - 800 KVA |
| Builder and Type |
Siemens - 420050.9015.005 |
| Characteristics |
Input: 3x1,5 Kv AC 50 Hz-700 A
Output: 2x0 at 2,2Kv 3f 650A - 0 at 140Hz 2250Kva |
| Builder and Type |
Abb Bur 2x28d-2-50 |
| Characteristics |
Input: 1x2800 V cc
Output: 2x440V 3f 60Hz, P1=38,4 and P2=41,8+2x150 at 440 V 3f
23/40/50/60 Hz, P3=P4=57,9 Kva |
_____________________________________
. |
| Builder |
Siemens |
| Type |
1TB 2824 |
| General Characteristics |
Three-Phase Asynchronous
Self Ventilated
4 Pole
Isol. class 200 |
_____________________________________
. |
| Builder |
Stone Ibéria |
| Power |
Heating: 5,0 Kw/
Refrigeration: 5,3 Kw |
|
