Class Number: 9301-9308
 Number Built: 8
 Year in Service: 1954/55		 Power Type: Electric
Service Type: Linha

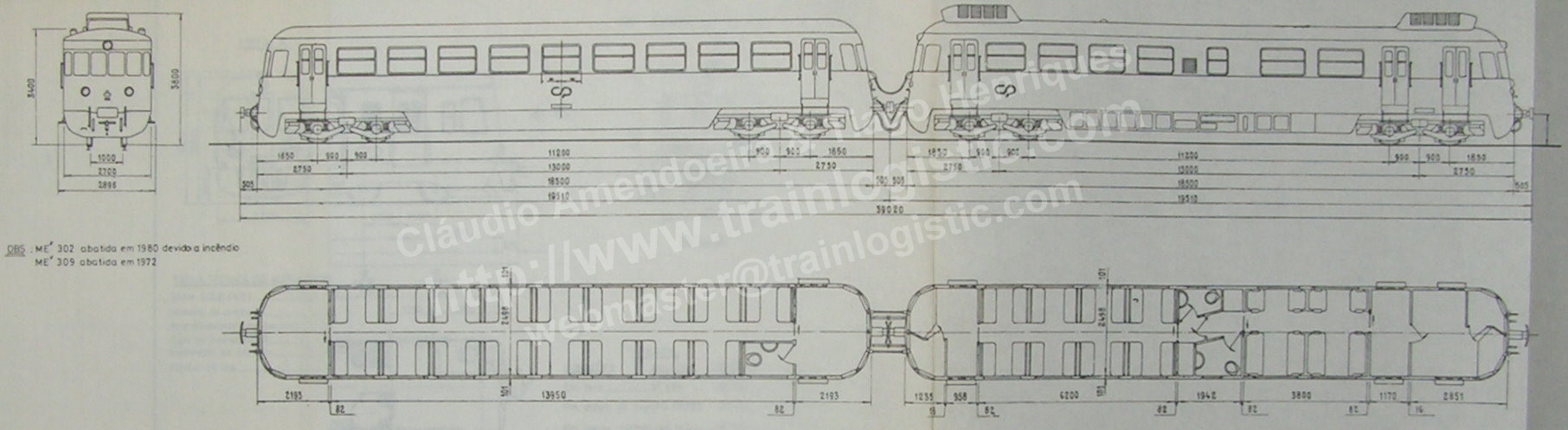

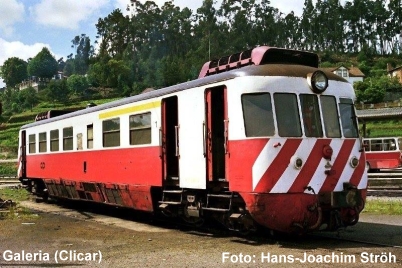

 Gauge: 1000 mm		 Pictures Gallery

Technical Data

Builders:
Mechanical Parts: N. V. Allan e Cª
Diesel Engine: A.E.C.
Transmission: Smit
Brake: Knorr

Traction:
Maximum Speed 70 Km/h
Maximum Tractive Effort 9.000 Kg
Continuous Tractive Effort 2.840 Kg
Continuous Tractive Effort (Speed) 27 Km/h
Tractive Effort at Max. Speed 1.100 Kg

Dynamic Brake:
Maximum Effort 146 kW
Corresponding Speed
Specifications:
Trainset Type Allan
Nominal Power (Wheels) 284 hp
Wheel Arrangement Bo' Bo'
Wheel Diameter (new) 820 mm
Driving Cabs (Number) 2
Air Brake Ar-Vacuo
Dynamic Brake Smit
Sanders (number) 8
Dead Man's Switch Allan-Smit
Multiple Working up to 2
Wheel Flange Lubrification 4 "Tipo Fiat"
Speed Recorder Hasler
Transmission Ratio 6,25:1

Traction Equipment
Prime Mover:
Number 2
Builder A.E.C.
Type A-220
Working Cycle 4 Stroke Cycle
Cylinder Number and Arrangement 6 L H
Bore and Stroke 130 x 142 mm
Total Displacement 2 x 11,3 = 22,6 l
Overfeeding Yes (B B C)
Nominal Power 204 hp
Nominal Speed 1.800 rpm
Effective Power 204 hp
Transmission:
Builder Smit
Type 1 - Main Generator G40/35
4 - Traction Motors GT30/27S
General Characteristics Bogie Suspended
Forced Ventilation
Transmission Ratio: 6,25:1

Heating Equipment:
Builder Allan
General Characteristics Car: Diesel Water
Trailer: Webasto Boiler
Pulsed air

Weight and Capacity
Supplies:
Fuel 34 Kg
Oil 2 x 30 Kg
Cooling Water 2 x 100 Kg
Sand 160 Kg
WC Water 2 x 75 Kg
Crew and Tools 200 Kg
TOTAL 1.110 Kg

Partial Weights:
Prime Mover 800 Kg
Main Generator 1.480 Kg
Traction Motor 760 Kg
Bogie (Tractive) 7.000 Kg
Bogie (Free) 4.800 Kg

Pesos: Car Trailer Total
Tare 37.000 Kg 22.000 Kg 59.000 Kg
In Running Order 38.100 Kg 22.100 Kg 60.200 Kg
Normal Load 42.100 Kg 28.000 Kg \
Maximum Load 42.200 Kg 31.500 Kg 75.700 Kg

Capacity 1st Class 2nd Class Standing
Car 12 32 26
Trailer -- 68 44
TOTAL 12 100 70
Luggage Capacity: 500 Kg TOTAL Capacity: 182
