Class Number: 2001-2021 / 2051-2075 / 2081-2091
 Number Built: 60
 Year in Service: 1957		 Power Type: Electric
Service Type: Regional

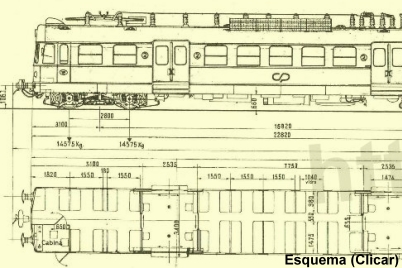

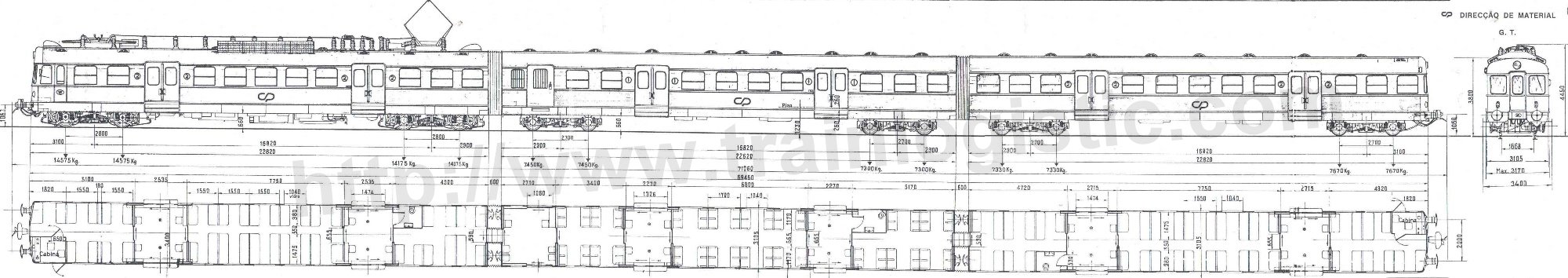

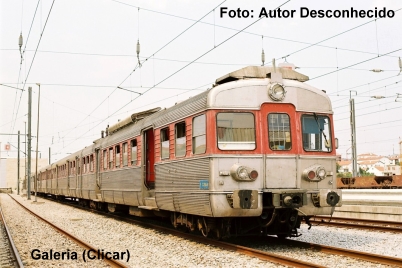

Gauge: 1668 mm		 Pictures Gallery

Technical Data

Builders:
Mechanical Parts Sorefame
Electric Equipment Groupement D'Electrification 50hz
Transmission Siemens, AEG, Oerlikon
Brake Jourdain Monneret
_____________________________________
Performance Figures:
Traction:
Maximum Speed 90 Km/h
Maximum Tractive Effort 11.650 Kgf
Continuous Tractive Effort 6.700 Kgf
Continuous Tractive Effort (Speed) 70 Km/h
Tractive Effort at Max. Speed 4.400 Kgf

Dynamic Brake:
Maximum Effort 5.100 Kgf
Corresponding Speed 57 Km/h
Specifications:
Trainset Type U.T.E.
Nominal Power (Wheels) 1.810 hp
Wheel Arrangement Bo' Bo' + 2' 2' + 2' 2'
Wheel Diameter (new) (M) 1.000mm / (R) 840mm
Driving Cabs (Number) 2
Air Brake Compressed Air
Dynamic Brake Groupement
Sanders (number) 8
Dead Man's Switch Oerlikon - Sifa
Multiple Working Up to 3
Wheel Flange Lubrification Doesn't have
Speed Recorder Hasler
Transmission Ratio 80 : 21

Traction Equipment
Transformer:
Builder B.B.C.
Power 1.000 KVA (25 KV)

Regulator:
Builder AEG
Type E.N.W. 22 F2
Transmission:
Builder Siemens, AEG, Oerlikon
Type 4 - Traction Motors OSA750
General Characteristics Totally Suspended
Forced Ventilation
Transmission Ratio: 80:21

Heating Equipment:
Builder Groupement
General Characteristics Tubular Resistors

Weight and Capacity
Supplies:
Transformer's Oil 800 Kg
Sand 300 Kg
W.C. Water 900 Kg
Crew and Tools 200 Kg
TOTAL 2.200 Kg

Partial Weights:
Transformer 4.400 Kg
Traction Motor 1.500 Kg
Bogie (Powered) 11.500 Kg
Bogie (Free) 4.500 Kg
Weights: Car Trailer Driving Trailer E.M.U.
In Running Order 62.100 Kg 31.300 Kg 31.300 Kg 124.700 Kg
Normal Load 73.300 Kg 42.220 Kg 43.060 Kg 158.580 Kg
Maximum Load 77.290 Kg 45.370 Kg 47.260 Kg 169.920 Kg
Overload 81.210 Kg 48.450 Kg 51.460 Kg 181.120 Kg

Capacity: Car Trailer D. Trailer E.M.U.
Seating 76 90 78 244
Standing (Normal Load *) 84 66 90 240
Standing (Maximum Load **) 141 111 150 402
Standing (Overload ***) 197 155 210 562
Total (Normal Load) 160 156 168 484
Total (Maximum Load) 217 201 228 646
Total (Overload) 273 245 288 806
Luggage capacity: 2.500 Kg
* Normal Load = 3 pass / m2
** Maximum Load = 5 pass / m2
*** Overload = 7 pass / m2
