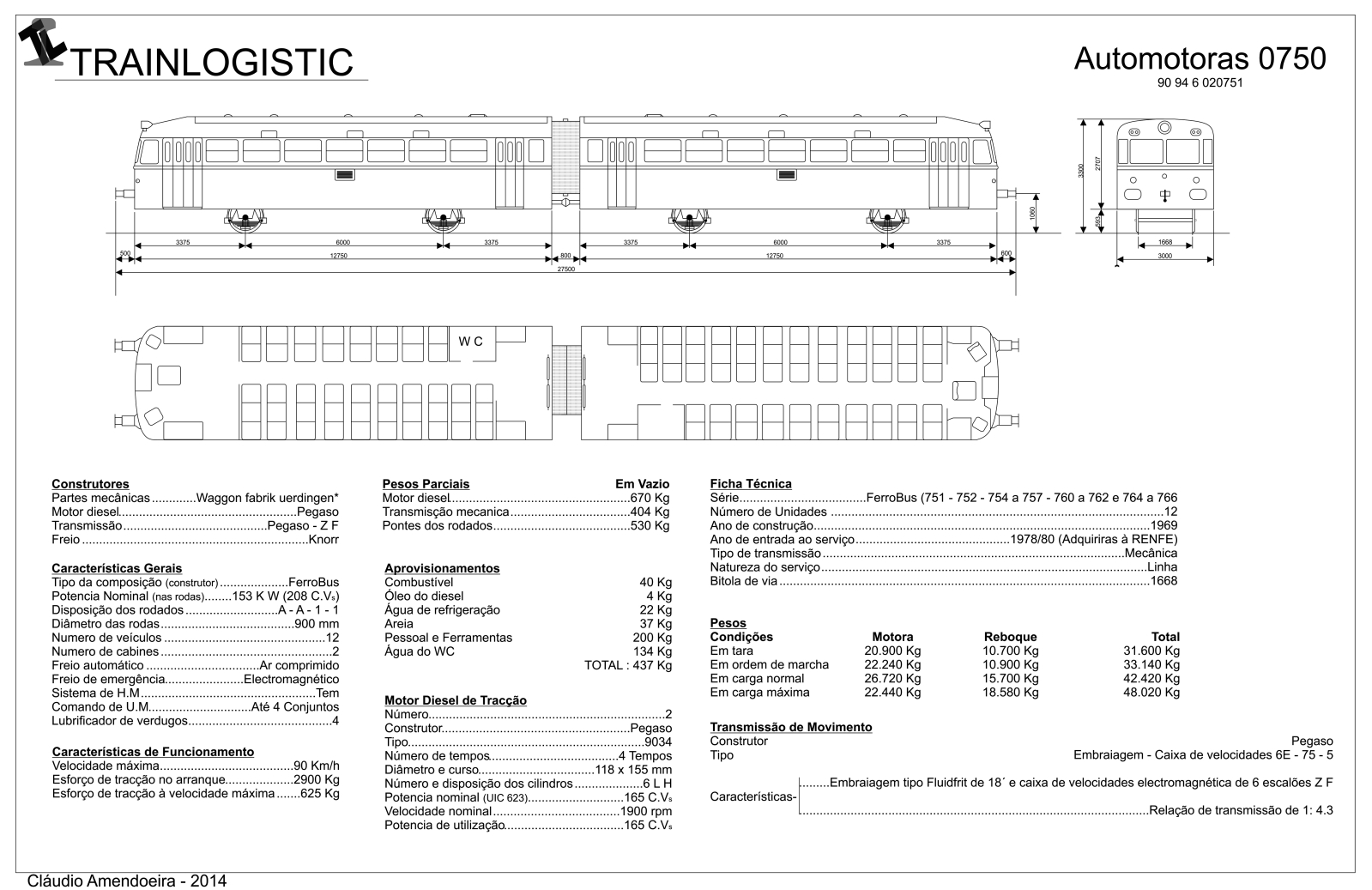

Class Number: 0751-0766 Number Built: 16 Year in Service: 1979/80 Power Type: Diesel-Mechanic Service Type: Linha Gauge: 1668 mm Pictures Gallery Technical Data Builders: Mechanical Parts: Waggon Fabrik Uerdingen Diesel Engine: Pegaso Transmission: Pegaso- Z F Brake: Knorr _____________________________________ . Performance Figures: . Traction: Maximum Speed 90 Km/h Maximum Tractive Effort 2.900 Kg Continuous Tractive Effort   Continuous Tractive Effort (Speed)   Tractive Effort at Max. Speed 650 Kg Dynamic Brake: Maximum Effort Doesn't have Corresponding Speed Doesn't have Specifications: Trainset Type Ferrobus Nominal Power (Wheels) 208 hp Wheel Arrangement A A + 1 1 Wheel Diameter (new) 900 mm Driving Cabs (Number) 2 Air Brake Compressed Air Emergency Brake Electromagnetic Sanders (number) 8 Dead Man's Switch N/A Multiple Working até 4 Wheel Flange Lubrification 4 Stroke Cycle Speed Recorder Doesn't have Transmission Ratio 1:4,3 Traction Equipment Prime Mover: Number 2 Builder Pegaso Type 9034 Working Cycle 4 Stroke Cycle Cylinder Number and Arrangement 6 L H Bore and Stroke 118 x 155 mm Total Displacement 10,17 L Overfeeding Doesn't have Nominal Power 165 hp Nominal Speed 1.900 rpm Effective Power 165 hp Transmission: Builder Pegaso - Z F Type Clutch 6E-75-S Gearbox General Characteristics 18'' Fluidfrit Clutch 6 Speed ZF Gearbox Transmission Ratio: 1:4,3 Heating Equipment: Builder Webasto (Trailer) General Characteristics Diesel Water (Car) Hot Air (Trailer) Weight and Capacity Supplies: Fuel 2 x 200 Kg Oil 2 x 20 Kg Cooling Water 220 Kg Sand 370 Kg W.C. Water 110 Kg Crew and Tools 200 Kg TOTAL 1.340 Kg Partial Weights Prime Mover 670 Kg Mechanic Transmission 404 Kg Axles 530 Kg Weights: Car Trailer Total Tare 20.900 Kg 10.700 Kg 31.600 Kg In Running Order 22.240 Kg 10.900 Kg 33.140 Kg Normal Load 26.320 Kg 15.700 Kg 42.020 Kg Maximum Load 29.040 Kg 18.580 Kg 47.620 Kg Capacity: Seating Standing Car 36* / 46 34 Trailer 60 36 TOTAL 96* / 106 94 Luggage Capacity: 1.200* Kg / 1000 Kg TOTAL CAPACITY: 166* / 176 * Units 753 - 758 - 759 and 763 Return to the Technical Center
