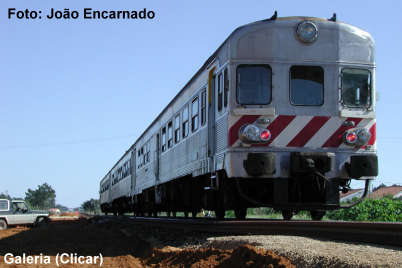

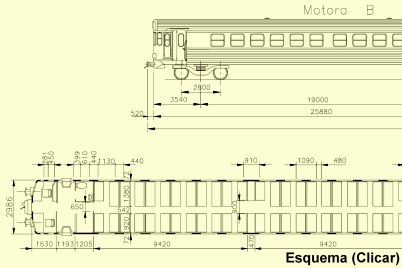

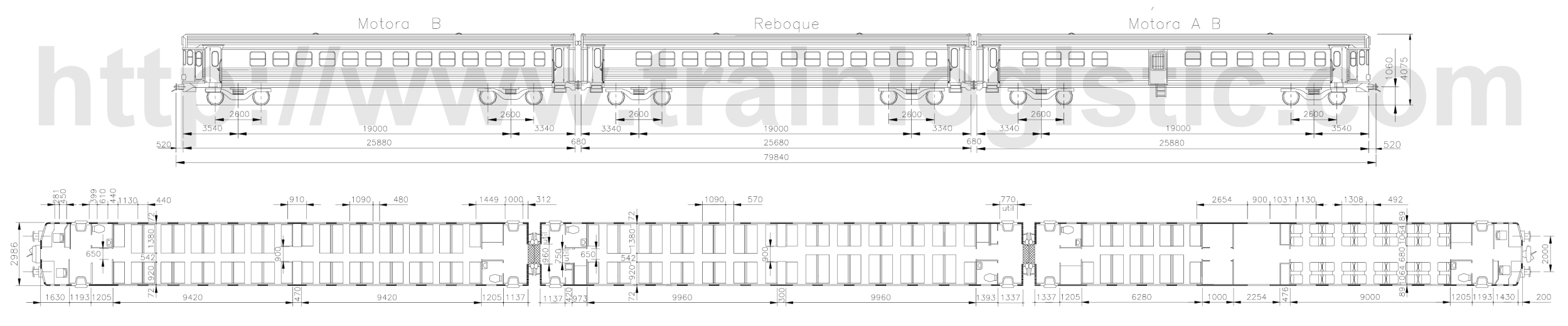

Class Number: 0601-0620 / 0621-0640 Number Built: 25 Year in Service: 1979/80 Power Type: Diesel-Hydraulic Service Type: Regional and Commuter Gauge: 1668 mm Pictures Gallery Technical Data Builders: Mechanical Parts: Sorefame Diesel Engine: S.F.A.C Transmission: E.M.G. - Voith Brake: WABCO _____________________________________ . Performance Figures . Traction: Maximum Speed 120 Km/h Maximum Tractive Effort 11.400 Kg Continuous Tractive Effort 7.600 Kg Continuous Tractive Effort (Speed) 22 Km/h Tractive Effort at Max. Speed 1.750 Kg . . Dynamic Brake: Maximum Effort Doesn't have Corresponding Speed Doesn't have Specifications: Trainset Type U.D.D. (nowadays U.T.D) Nominal Power (Wheels) 775 hp Wheel Arrangement 2' B' + B' 2' Wheel Diameter (new) 920 mm Driving Cabs (Number) 2 Air Brake Compressed Air PBA 2 Dynamic Brake Doesn't have Sanders (number) 8 Dead Man's Switch Deuta - Sifa Multiple Working up to 3 Wheel Flange Lubrification Lubrovia Speed Recorder Hasler Transmission Ratio 1/3,307 Traction Equipment Prime Mover: Number 1 (per vehicle) Builder S.F.A.C. Type S.D.H.R. 1 Working Cycle 4 Stroke Cycle Cylinder Number and Arrangement 6 L H Bore and Stroke 175 x 200 mm Total Displacement 28,862 l Overfeeding Yes Nominal Power 550 hp Nominal Speed 1.500 rpm Effective Power 525 hp Transmission: Builder Voith Type 2 - Hydraulic BoxesT420r 4 - Inverter Bridges 2 AG 201V - 2 AG 201 General Characteristics Built-in Inverser 2 Hydraulic regimes Automatic Transmission Transmission Ratio: 1/3,307 Other Equipment Battery Charger: Builder EVR Type 1-70147 Input Tension ? Output Tension 26,5-28 V Charging Intensity 300 A Batteries: Nominal Tension 24 V c.c. Type Alcalinas Capacity 450 Ah Heating Equipment: Builder Air Industrie General Characteristics Diesel Burner Pulsed Air Sound Equipment: Builder Doesn't Have Destiny Indication System: Builder Doesen't Have Weight and Capacity Supplies: Fuel 920 Kg Oil 2 x 50 Kg Transmission Oil 2 x 159 Kg Sand 360 Kg TOTAL 1.539 Kg Partial Weights Prime Mover 3.260 Kg Hydraulic Transmission ? Bogie (Traction) 7.300 Kg Bogie (Free) 6.100 Kg Weights: Car AB Car B Trailer Total In Running Order 55.520 Kg 54.180 Kg 41.000 Kg 150.700 Kg Normal Load 64.130 Kg 65.660 Kg 52.480 Kg 182.270 Kg Maximum Load 66.300 Kg 67.970 Kg 54.790 Kg 177.550 Kg Overload 66.930 Kg 68.600 Kg 55.420 Kg 190.950 Kg Capacity: Car AB Car B Trailer Total Seating (1st Class) 40 ---- ---- 40 Seating (2nd Class) 38 116 116 270 Standing (Normal Load *) 45 48 48 141 Standing (Maximum Load **) 76 81 81 238 Standing (Overload ***) 85 90 91 266 Total (Normal Load) 123 164 164 451 Total (Maximum Load) 154 197 197 548 Total (Overload) 163 206 206 575 Luggage Capacity: 2.500 Kg   * Normal Load= 3 pass / m2   ** Maximum Load= 5 pass / m2   *** Overload = 7 pass / m2 (lobby) + 5 pass / m2 Return to the Technical Center
