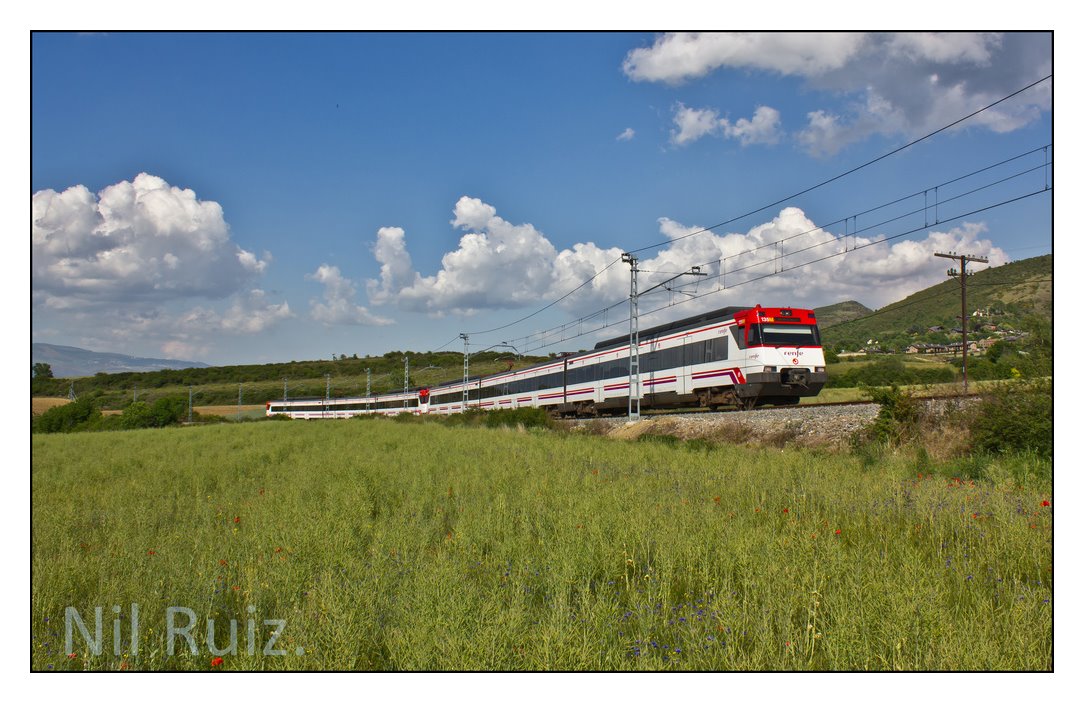

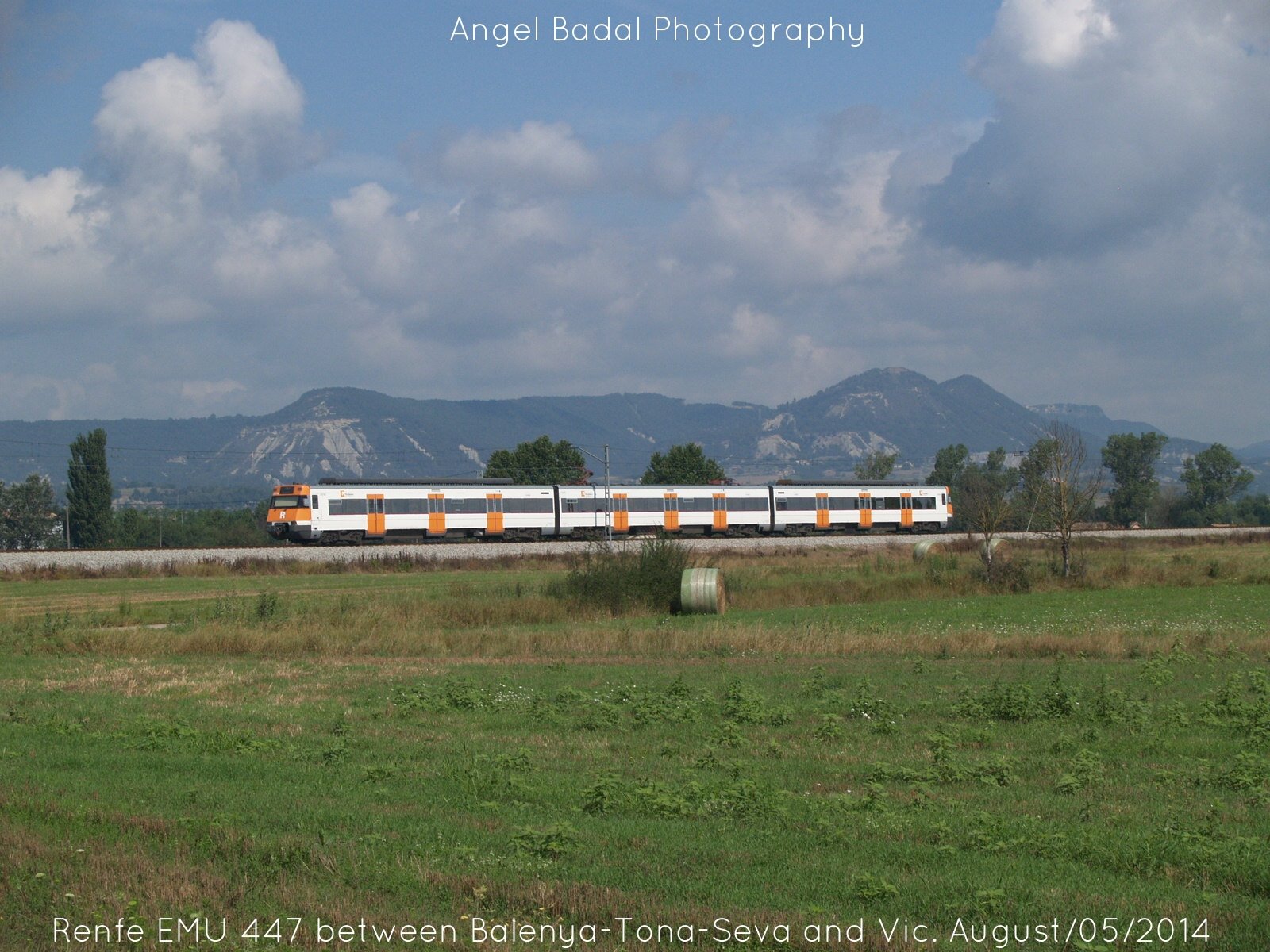

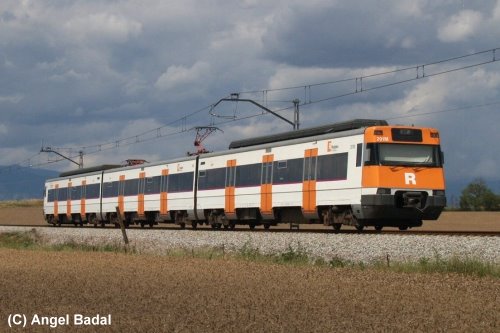

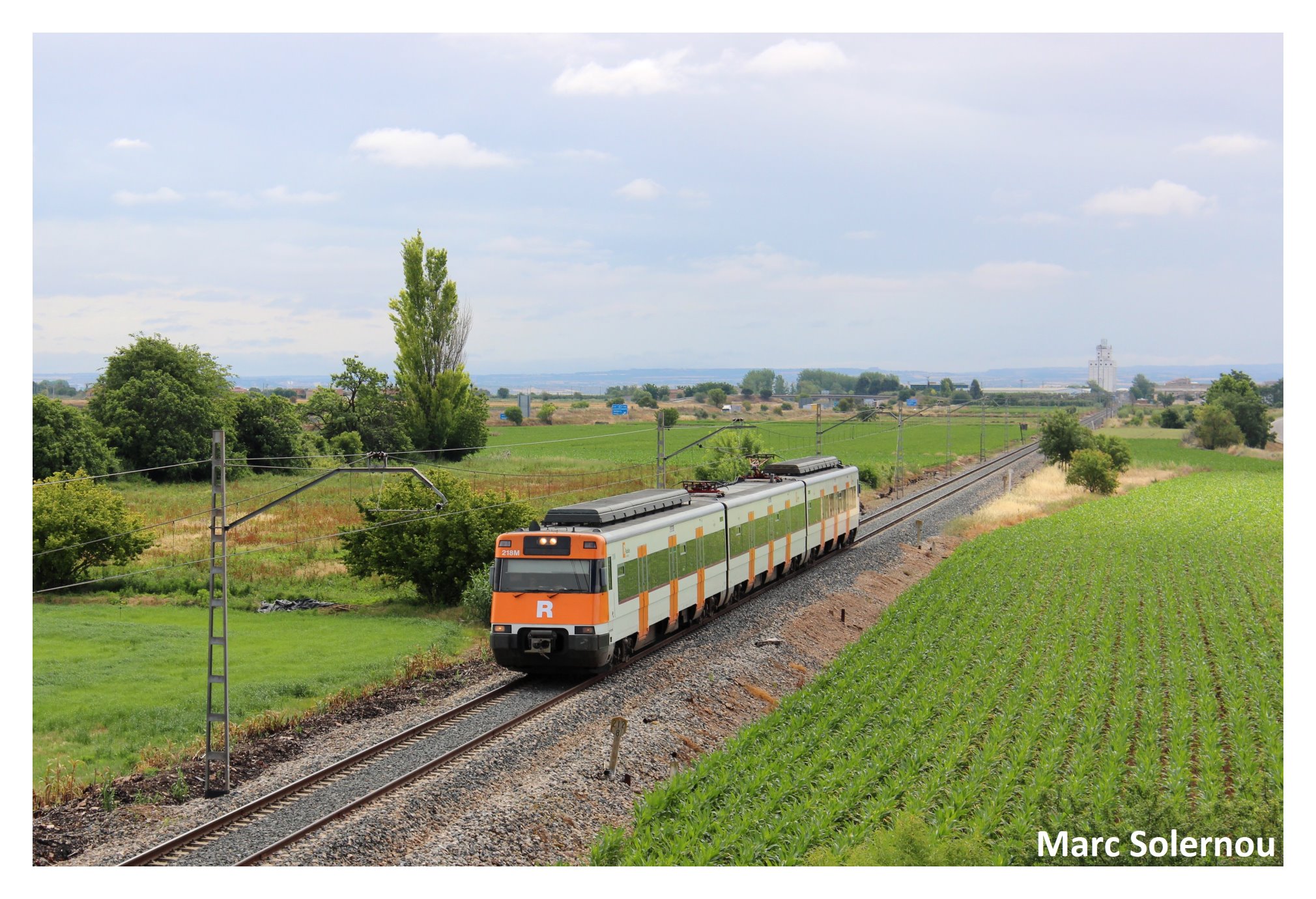

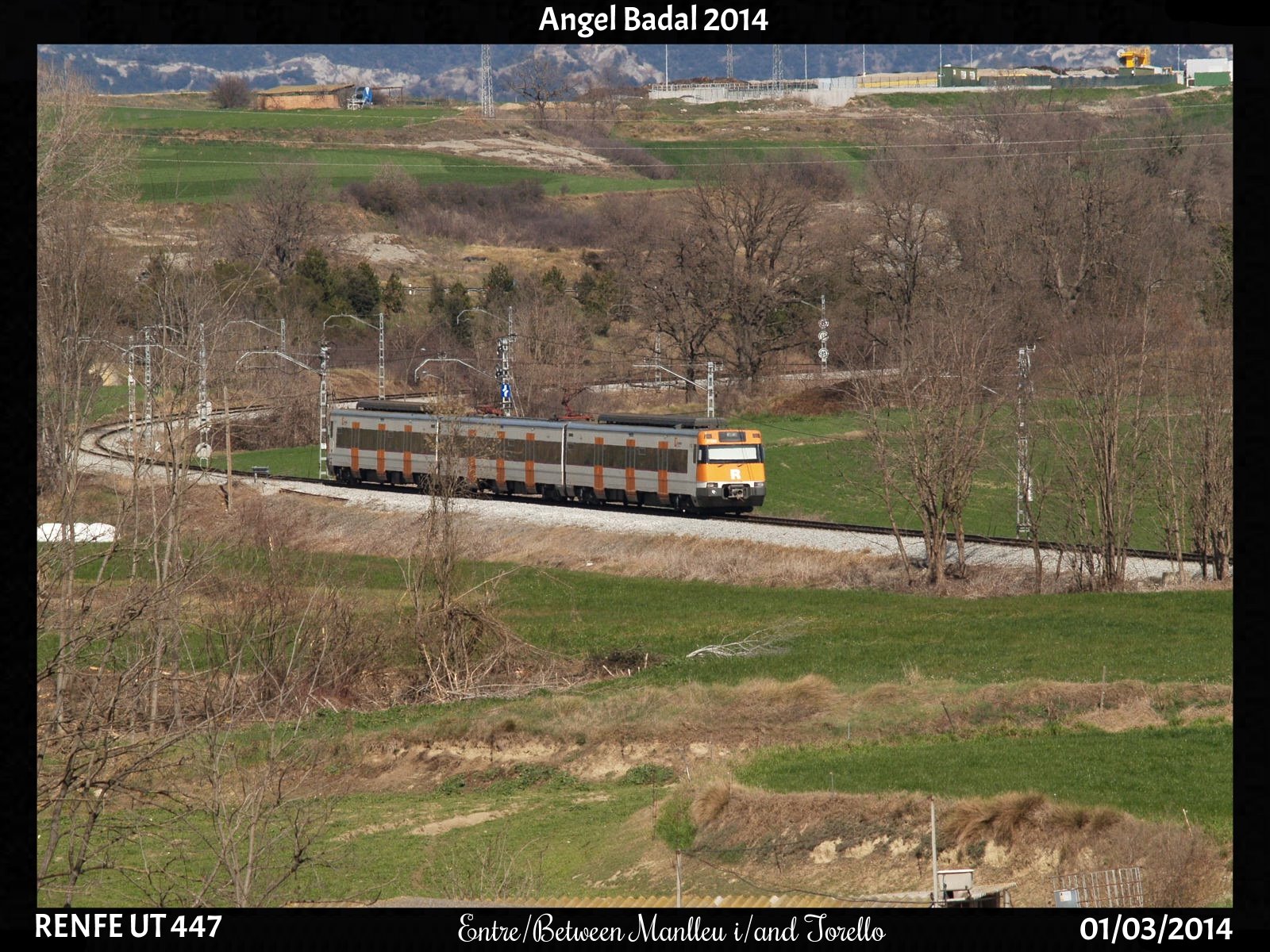

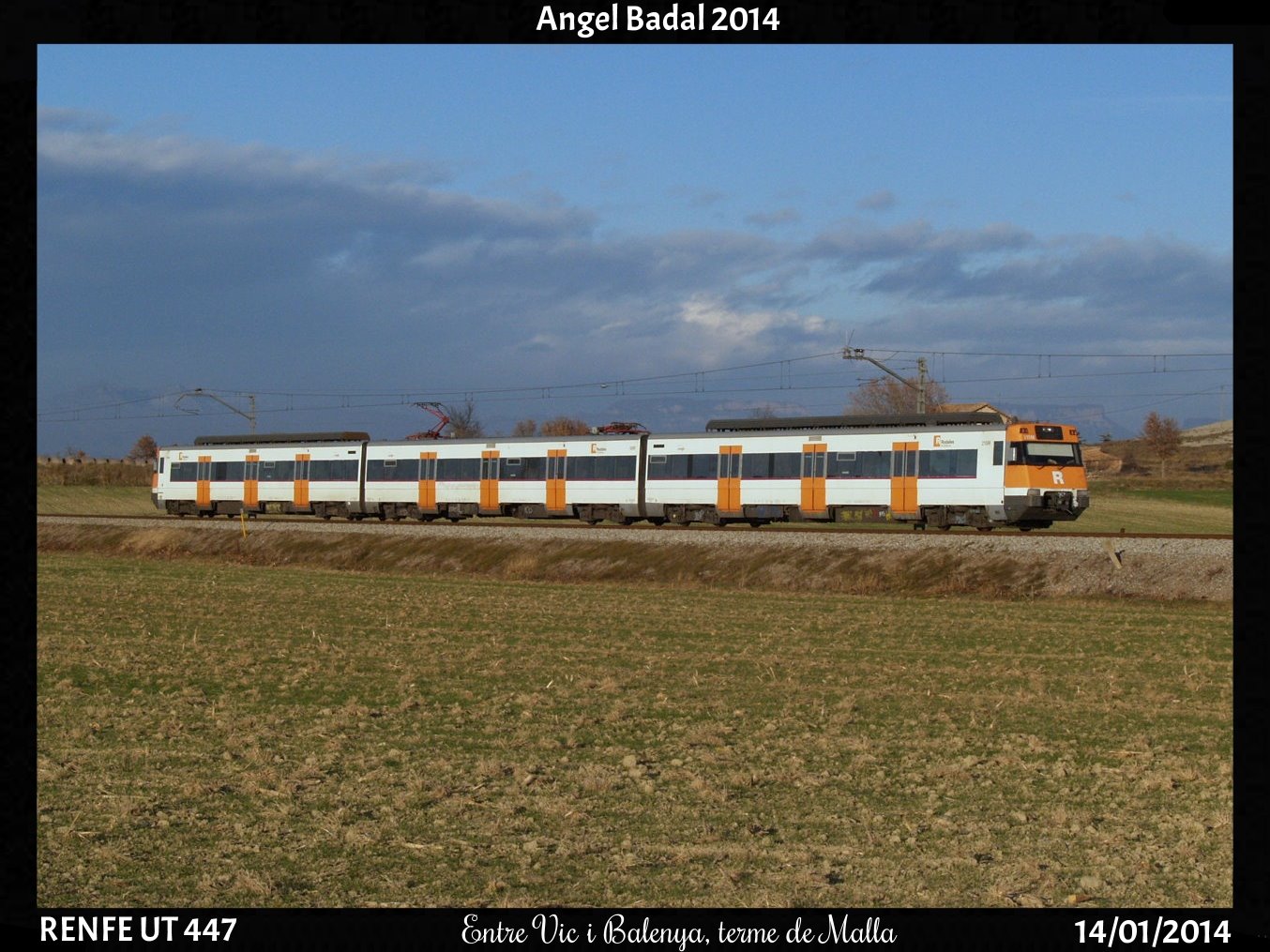

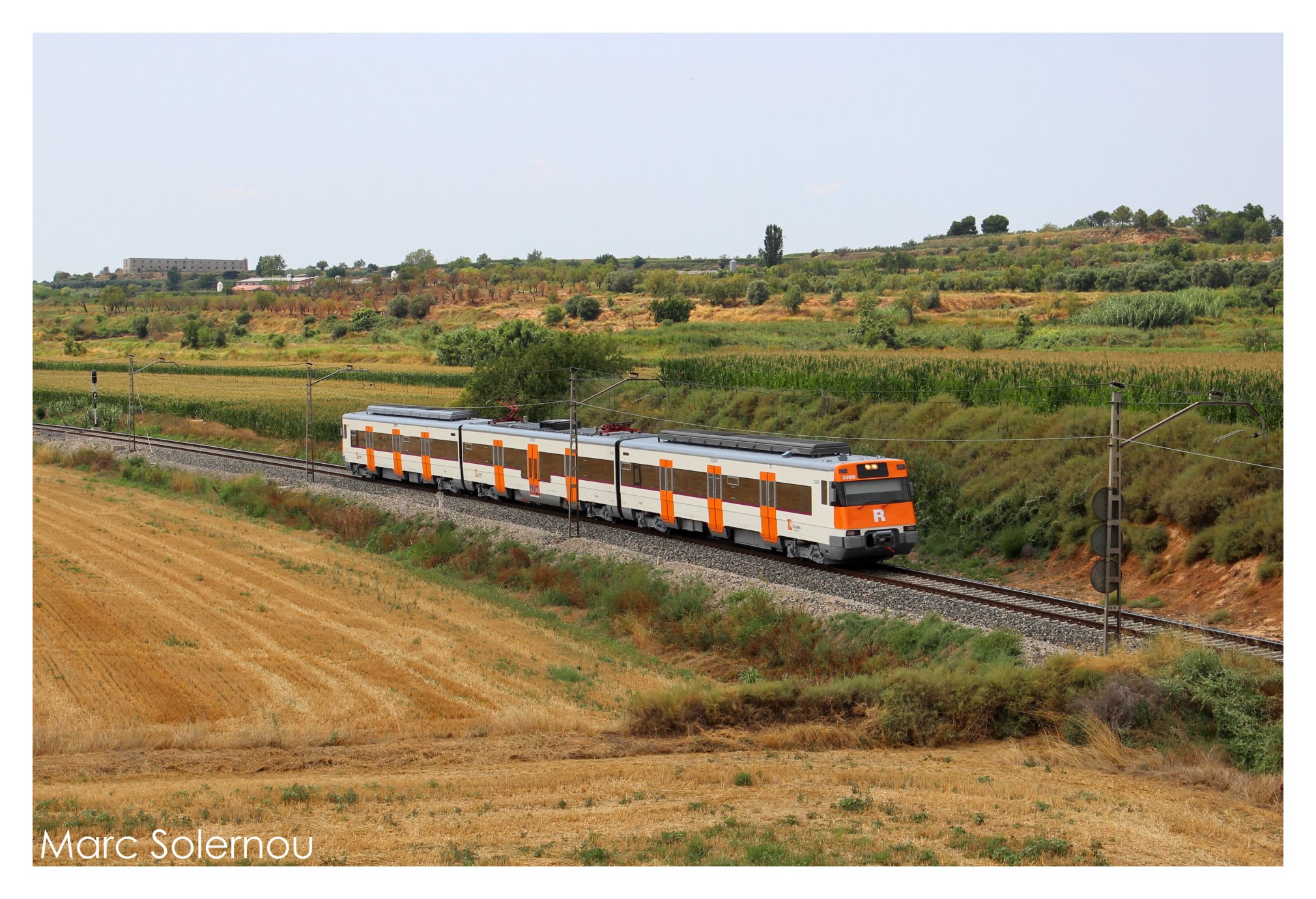

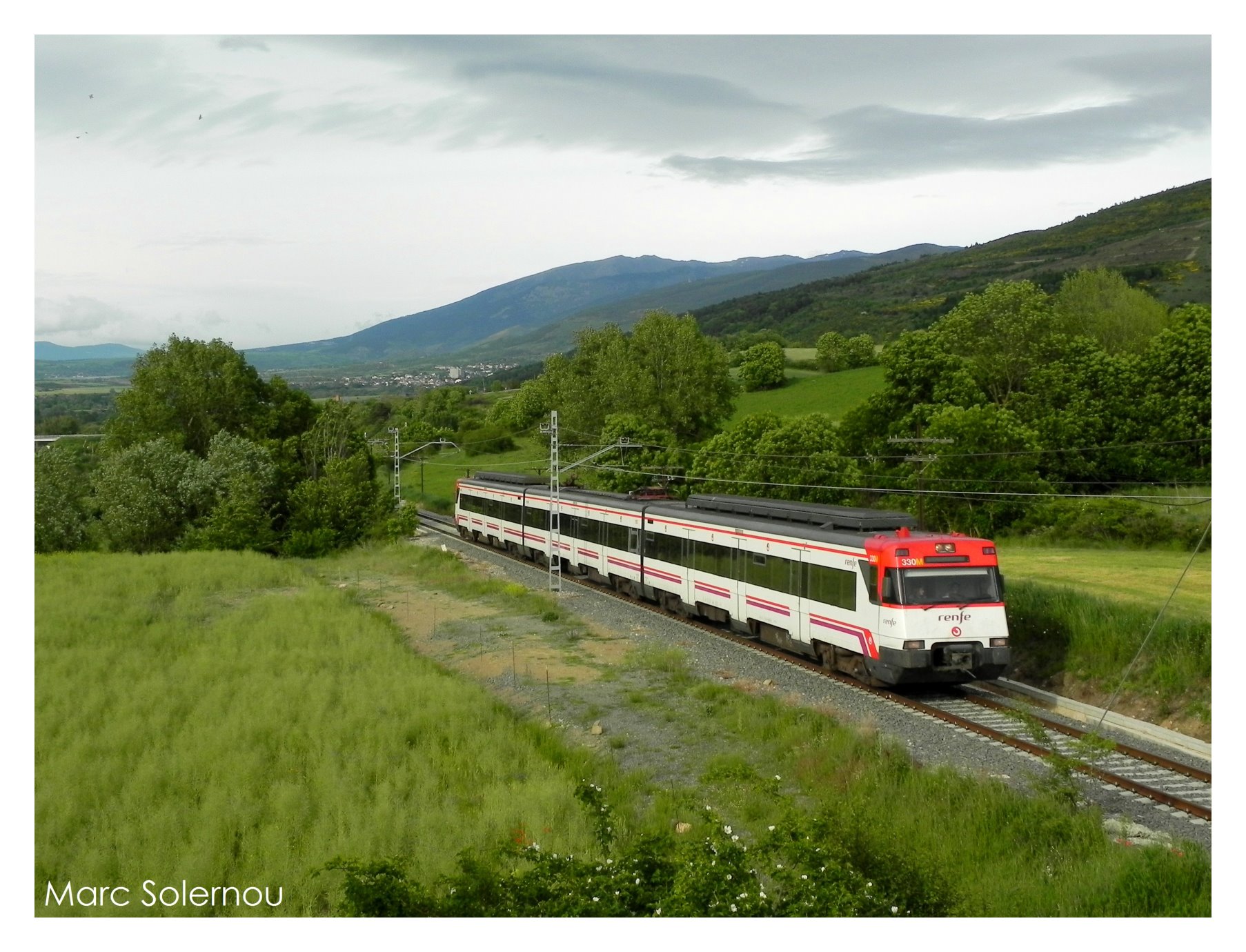

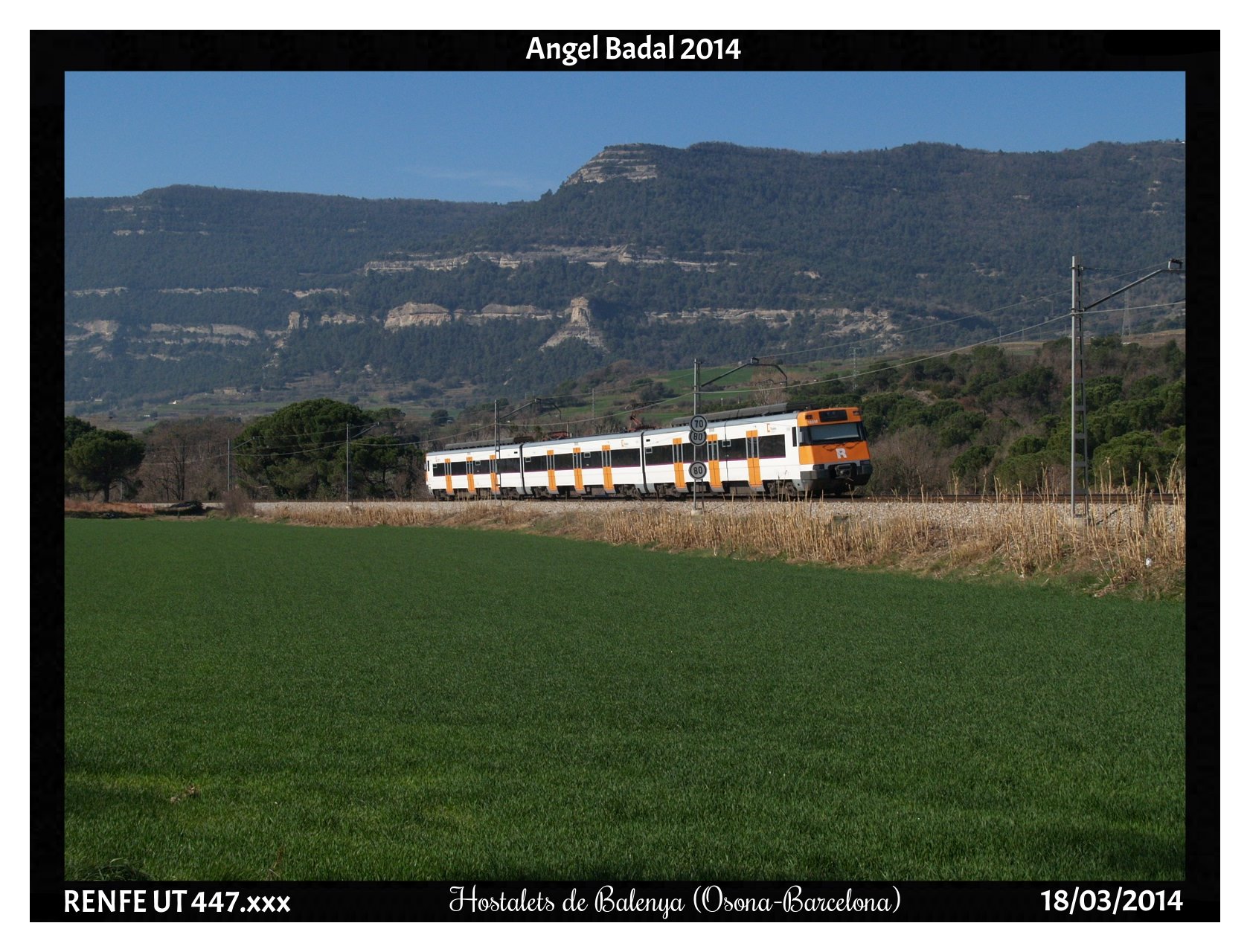

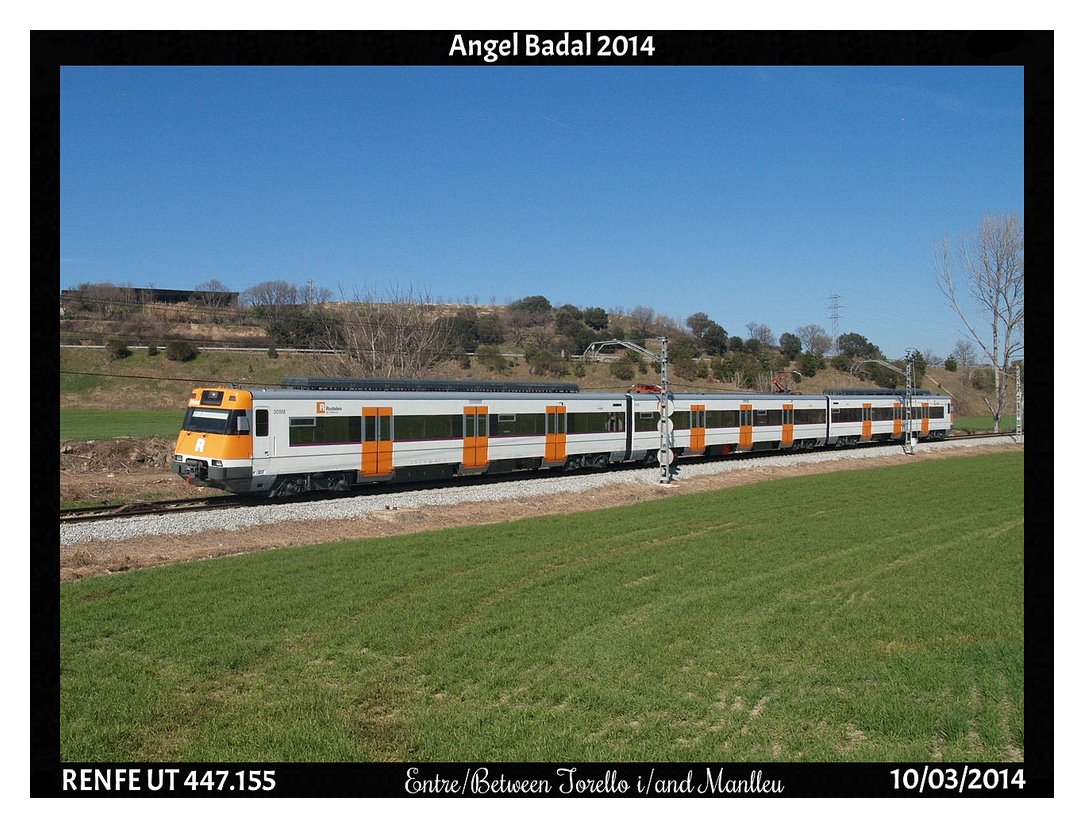

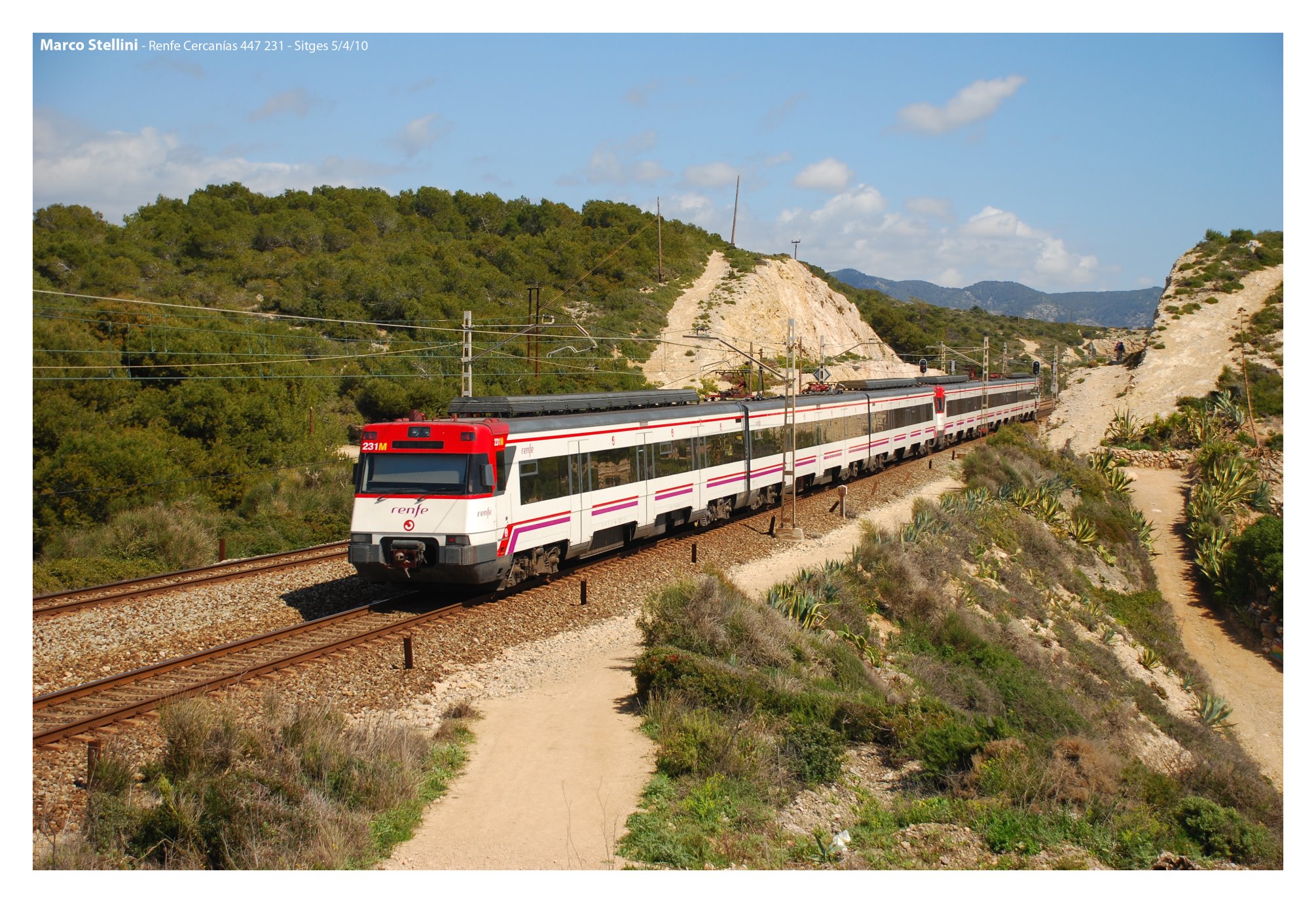

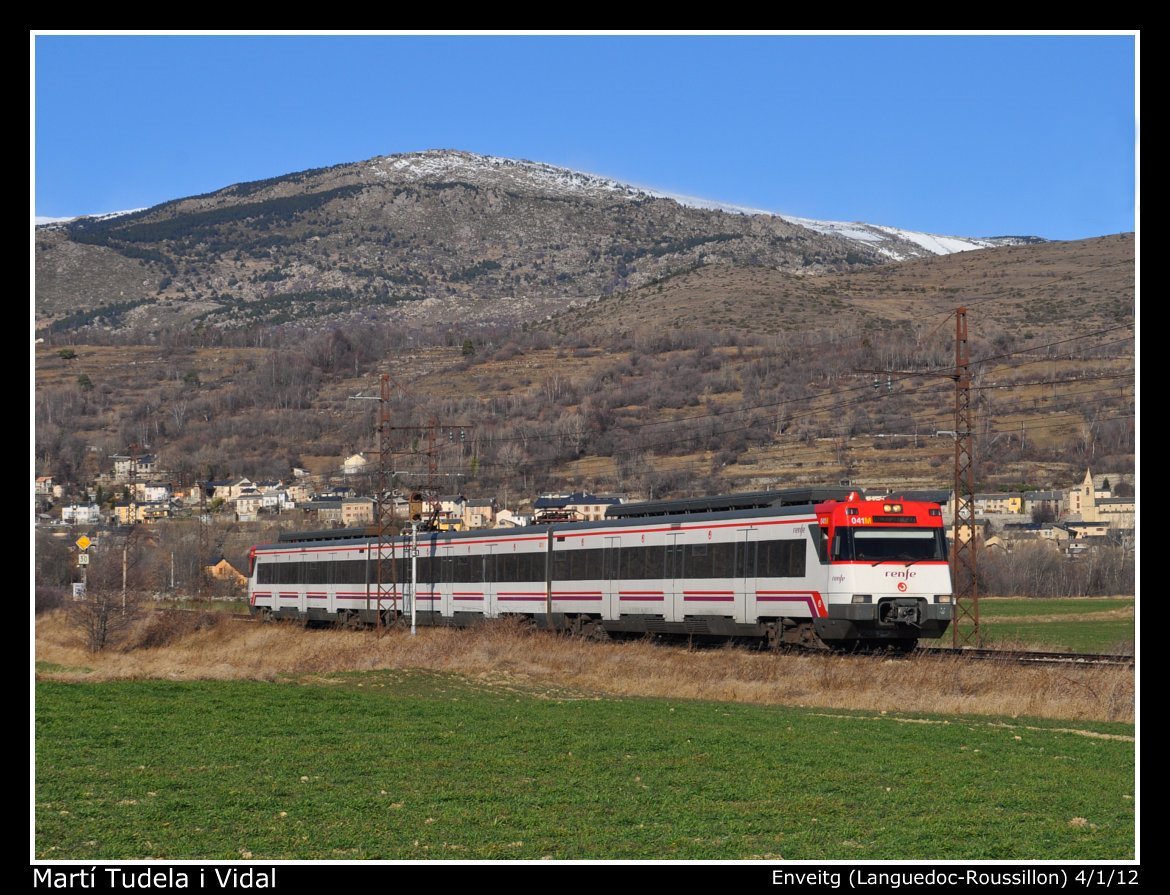

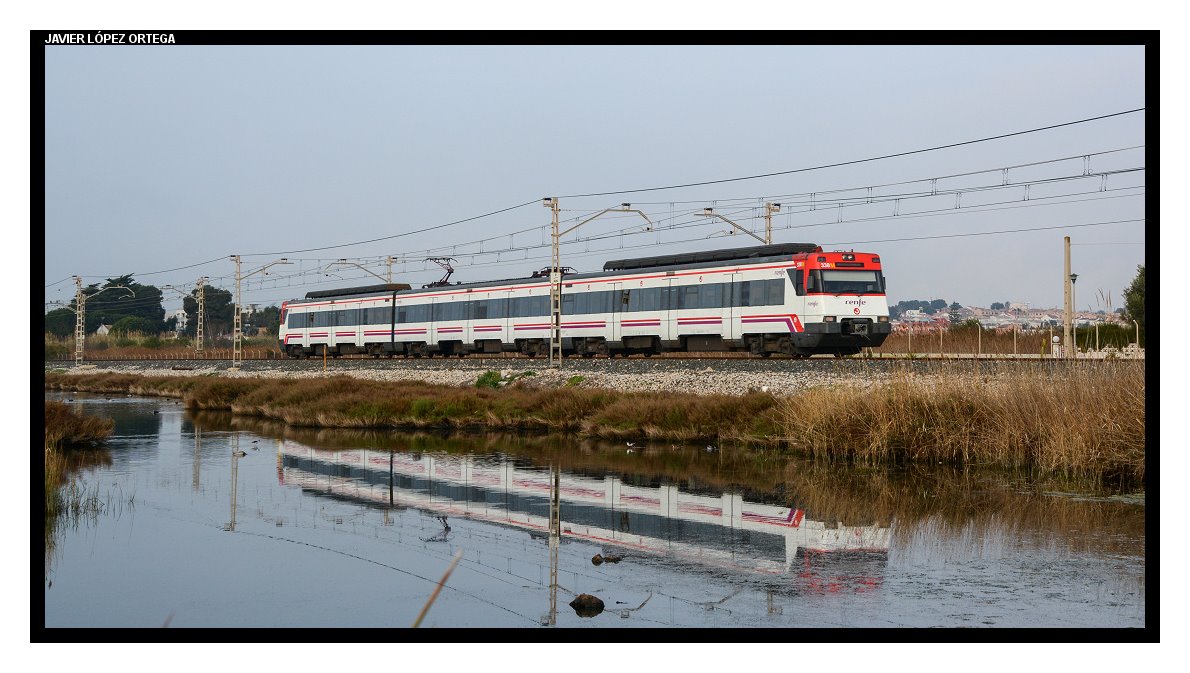

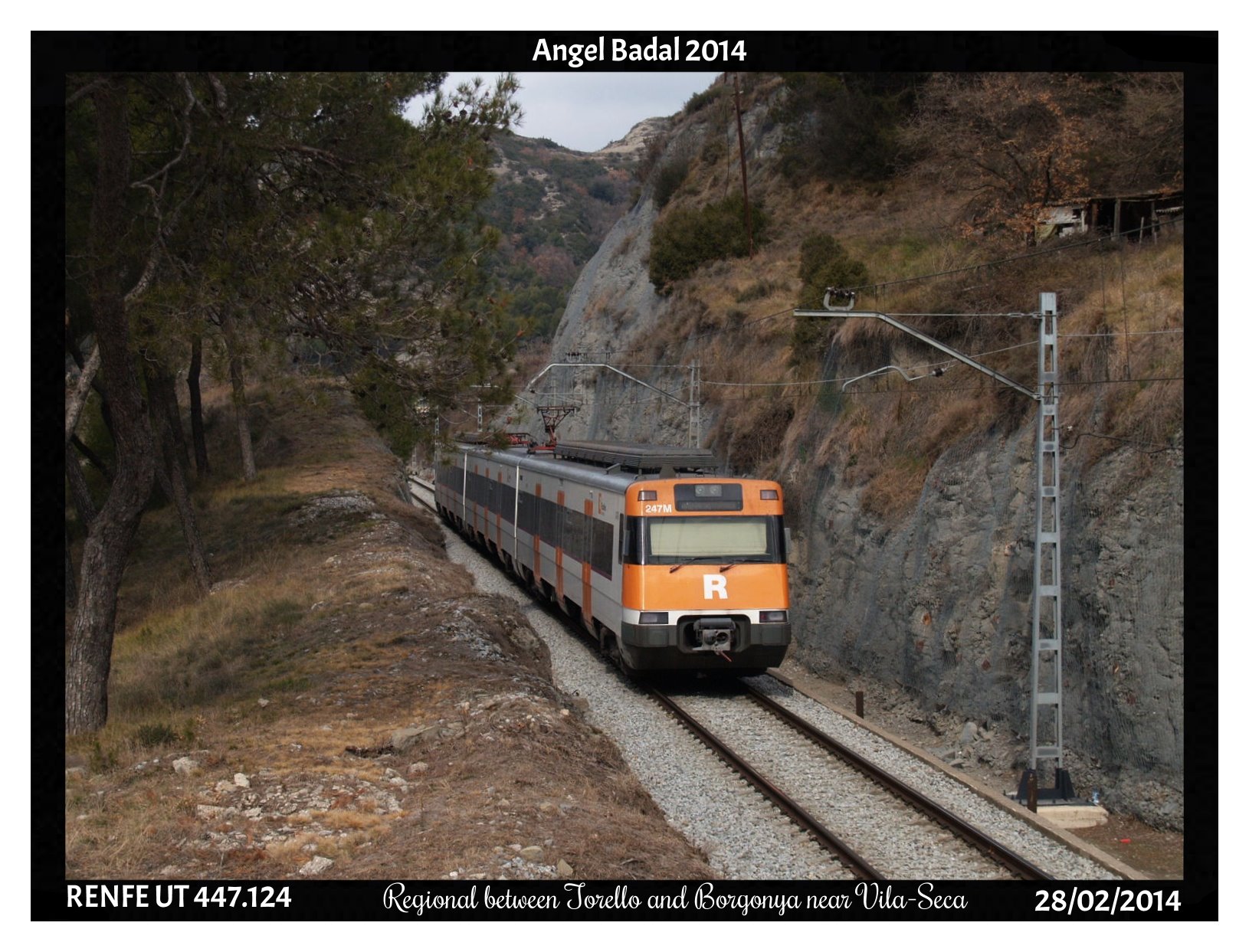

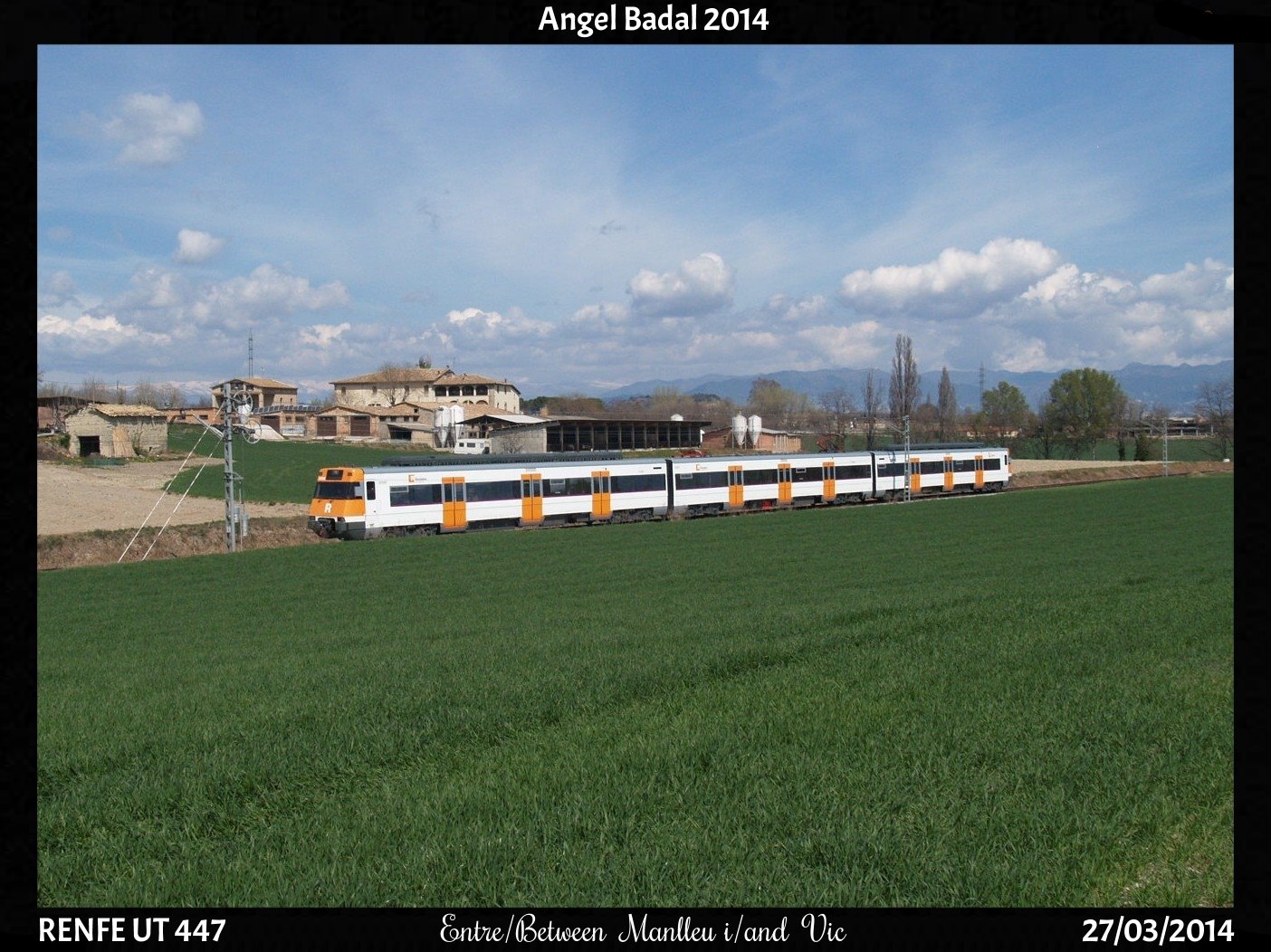

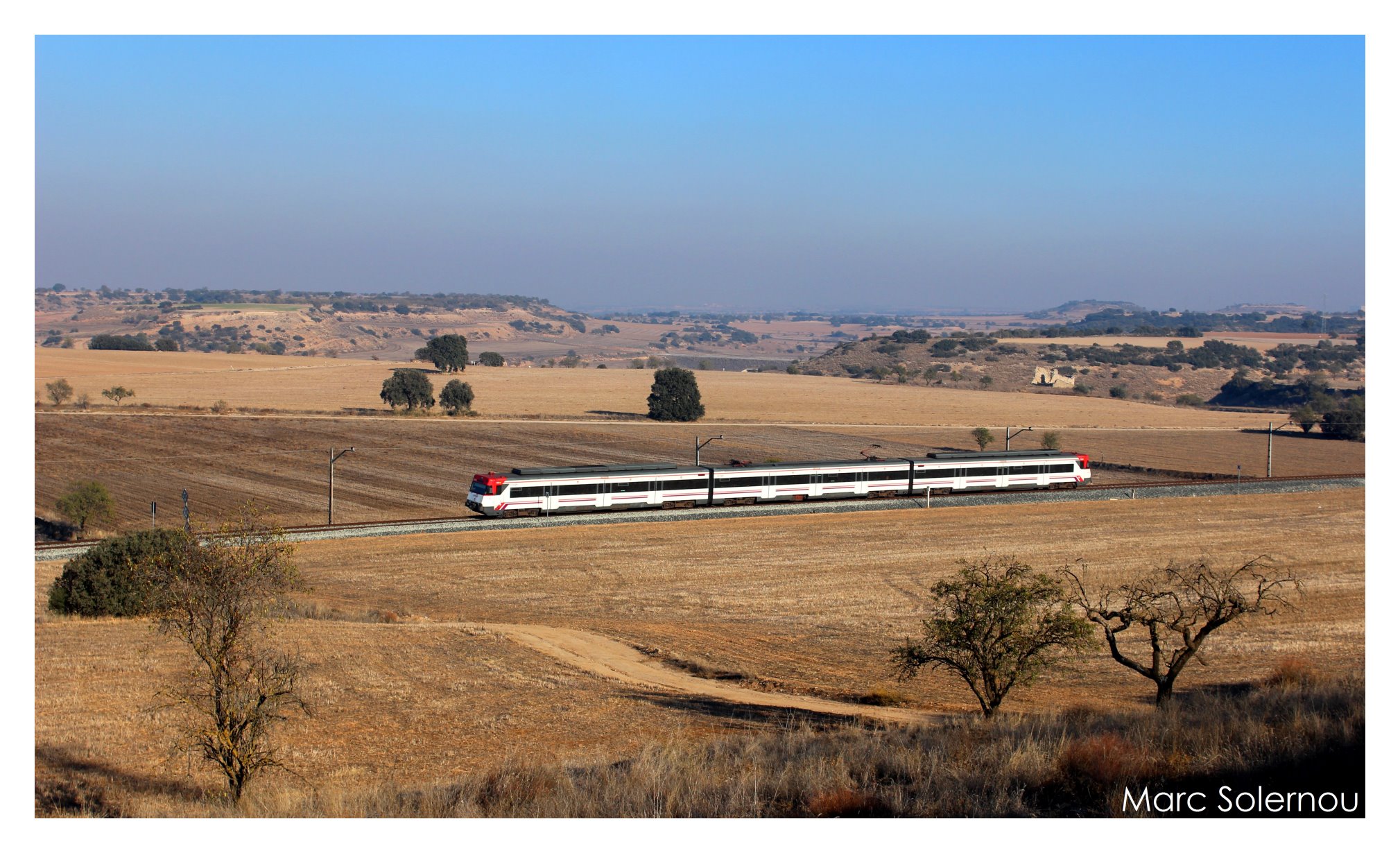

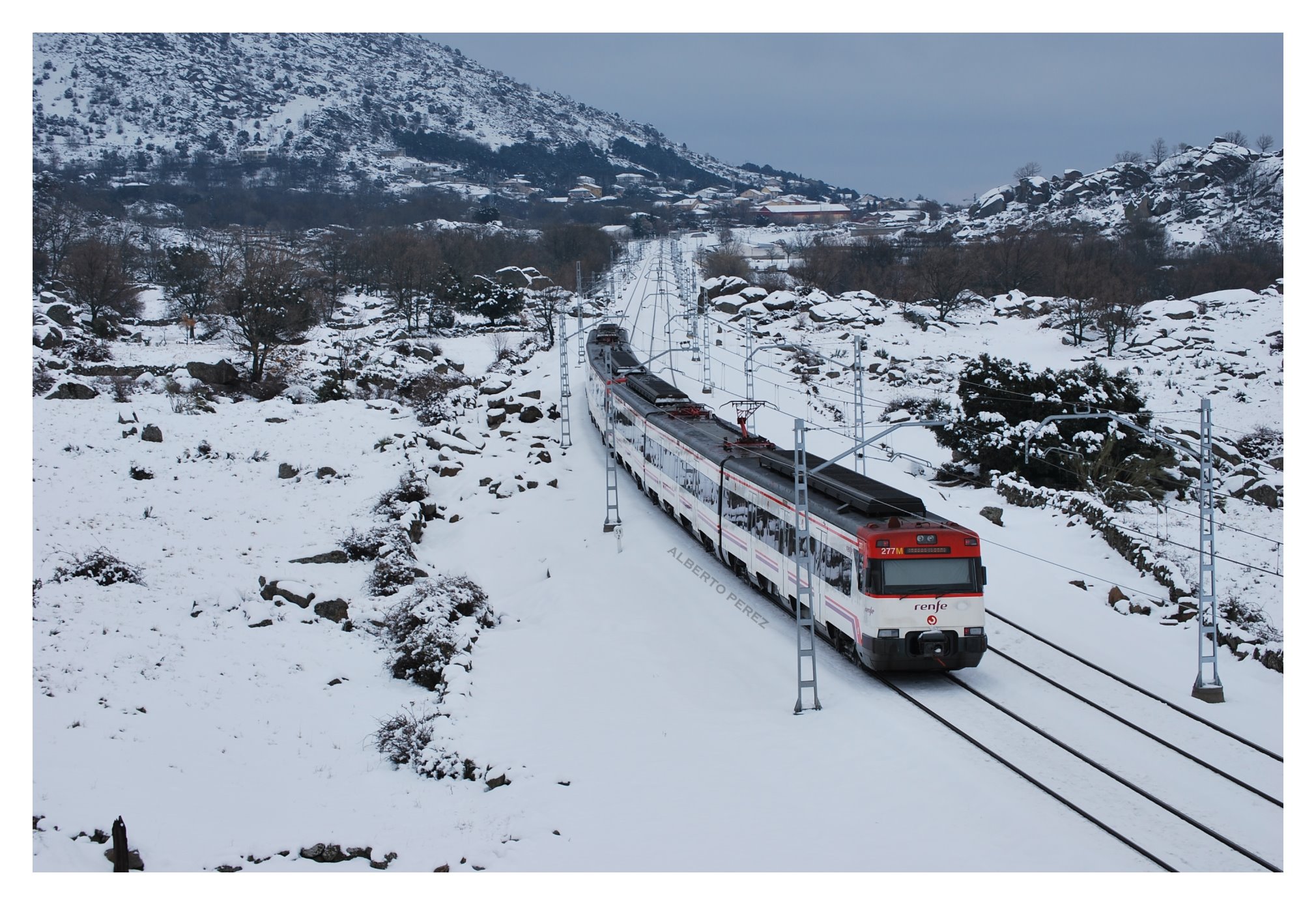

Year in Service: 1993/94 Number: 183 Number (Operational): Maximum Speed: 120 Kms/h Status: At Service Service Type: Commuter Diferent Units: Balenyá Castellnou de Seana - 447.109 Enveitg Fontanals de Cerdanya Gurb Juneda - 447.104 Malla Malla Manlleu Manlleu - 447.155 Queixans Ripoll - 447.106 Sils - 447.103 Sitges Tàrrega - 447.059 Torredembarra Torredembarra - 447.169 Urtx - 447.165 Vila-Seca - 447.124 Zarzalejo Technical Data Builders: Mechanical Parts: CAF Electric Equipment:: Siemens Transmission:   Brake: Knorr Traction: Maximum Speed 120 km/h Maximum Tractive Effort 230 kN Continuous Tractive Effort   Continuous Tractive Effort (Speed)   Tractive Effort at Max. Speed 58 kN Dinamic Brake: Maximum Effort   Corresponding Speed   Effort at Max. Speed   Specifications: Locomotive Type   Nominal Power (Wheels) 2.400 kW Wheel Arrangement Bo' Bo' + 2' 2' + Bo' Bo' Wheel Diameter (new) 890 mm Driving Cabs (Number) 2 Air Brake Compressed Air Dynamic Brake Rheostatic and Regenerative Sanders (number)   Dead Man's Switch   Multiple Working Up to 4 Wheel Flange Lubrification   Speed Recorder   Transmission Ratio   Dimentions: Height 4.185 mm Width 2.900 mm Lenght 75.993 mm Tare 162,5 t Electric and Traction Equipment Traction Motors:: Builder Siemens Type ITB2220-oJA 03 Number 4 (x2) Working System Trifásico Assíncrono Nominal Tension 1.800 V Nominal Current 127 A Nominal Power 320 kW Nominal Speed 1.900 r.p.m. Maximum Speed 4.000 r.p.m. Batteries: Type Níckel-Cadmium Nominal Tension 72 V cc Number of Cells 55 Capacity 190 Ah Battery Charger: Number 1 Input Tension: 380 V ca trifásica Output Tension: 72 V cc Static Converter: Number 2 Input Tension 2.400 V cc Output Tension 380 V ca Output Frequency 50 Hz Other Equipament Main Compressor: Builder Knorr-Bremse Type VV 230/180-2 Air Flow 1.400 L/min Drive Motor A.C., 12 kW at 1.450 r.p.m. Minimum Pressure 8,5 bar Maximum Pressure 10 bar Sistema de Ar Condicionado: Número 3 Potência de Refrigeração 22,3 kW Potência de Aquecimento 36,4 kW Tensão Nominal 380 V ac Three-Phase Main Compressor Drive Motor: Number 1 Nominal Power 12 kW Nominal Tension 380 V ac Three-Phase Nominal Speed 1.450 r.p.m. Auxiliary Compressor Drive Motor: Number 1 Nominal Tension 72 V dc Nominal Speed 2.000 r.p.m. Doors Drive Motor: Number 18 Nominal Power 192 W Nominal Tension 48 V dc Weight and Capacity Weight: Car 1 Trailer Car 2 U.T.E. Body 37.500 Kg 32.300 Kg 37.550 Kg 107.300 Kg Bogies 21.000 Kg 13.200 Kg 21.000 Kg 55.200 Kg Tare 58.500 Kg 45.500 Kg 58.500 Kg 162.500 Kg Maximum Load (1st and 3rd Generation) 17.300 Kg 19.000 Kg 17.300 Kg 53.600 Kg Maximum Load (2nd Generation) 16.610 Kg 18.300 Kg 16.610 Kg 51.600 Kg Maximum Weight (1st and 3rd Generation) 75.800 Kg 64.500 Kg 75.800 Kg 216.100 Kg Maximum Weight (2nd Generation) 75.100 Kg 64.800 Kg 75.100 Kg 214.100 Kg Capacity Car 1 Trailer Car 2 U.T.E. Seating Capacity (1st and 3rd Generation) 78 78 78 234 Seating Capacity (2nd Generation) 90 90 90 270 Standing Capacity (1st and 3rd Generation) 152 164 152 468 Standing Capacity (2nd Generation) 123 145 123 391 Total (1st and 3rd Generation) 230 242 230 702 Total (2nd Generation) 213 235 213 661 Back to the List
