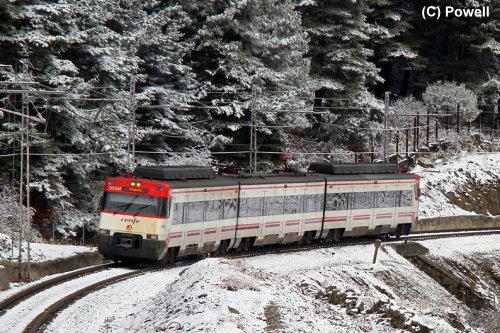

Year in Service: 1989/93
Number: 170
Number (Operational): 167
Maximum Speed: 100 Kms/h
Status: At Service
Service Type: Commuter

Diferent Units:

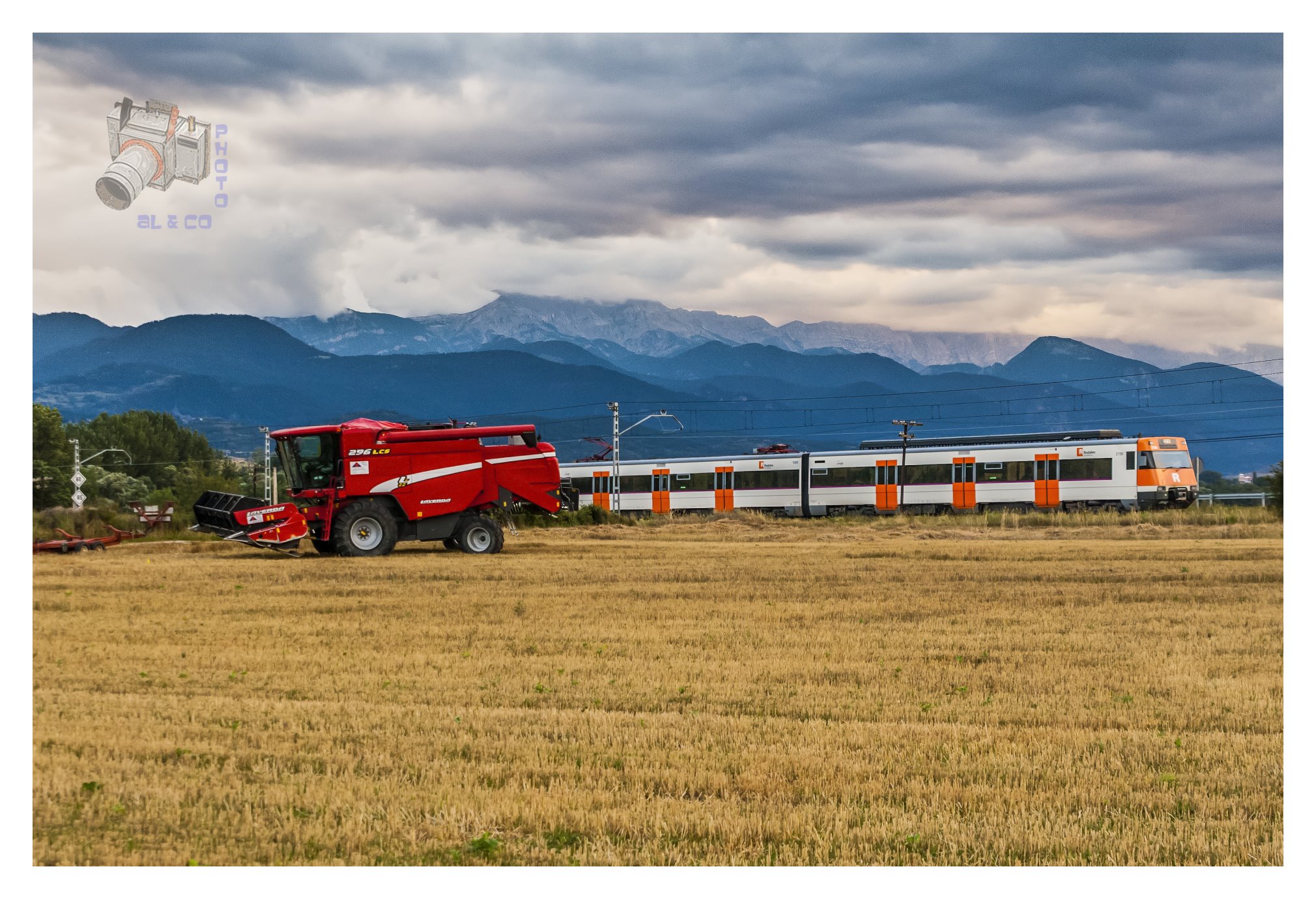

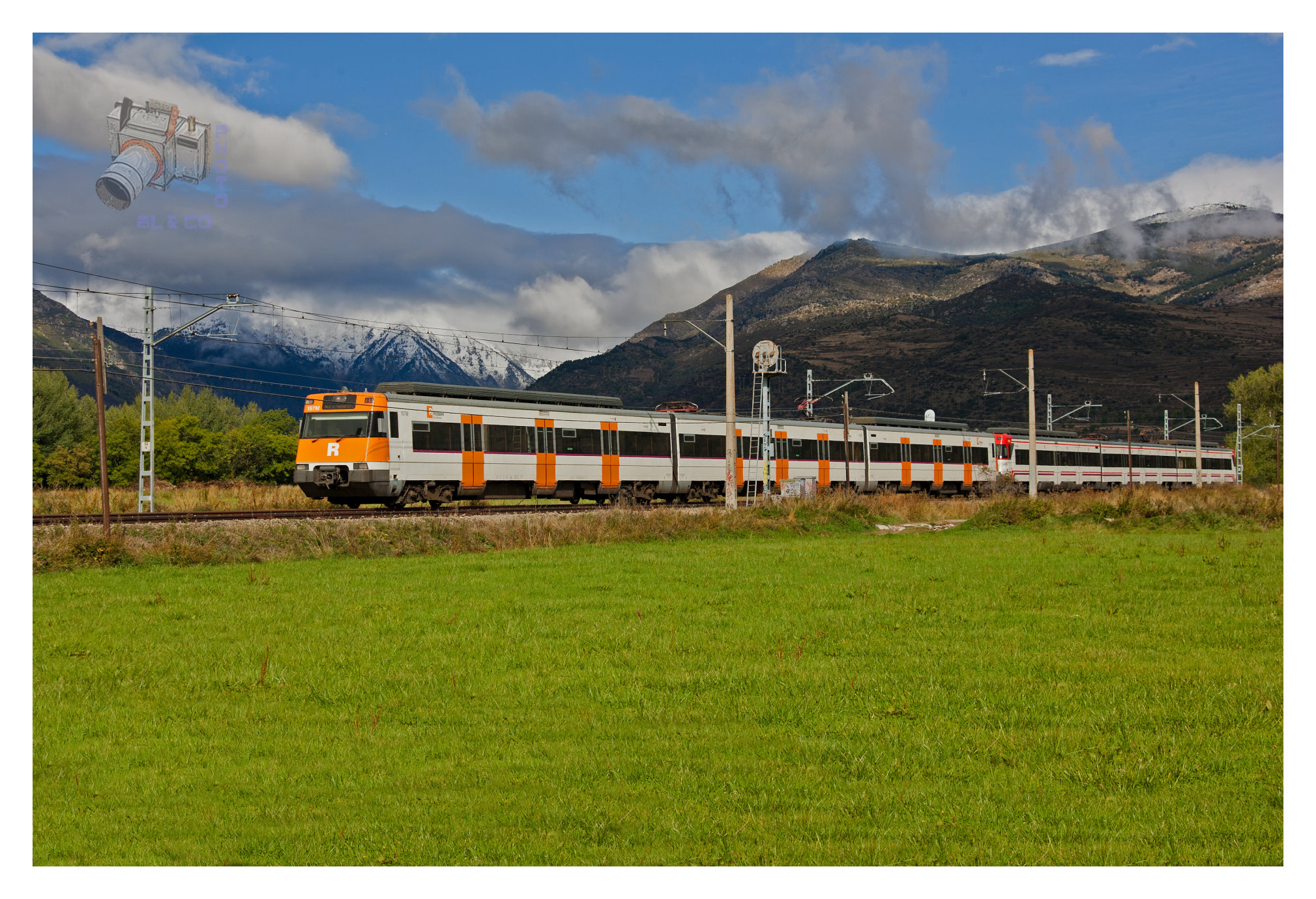

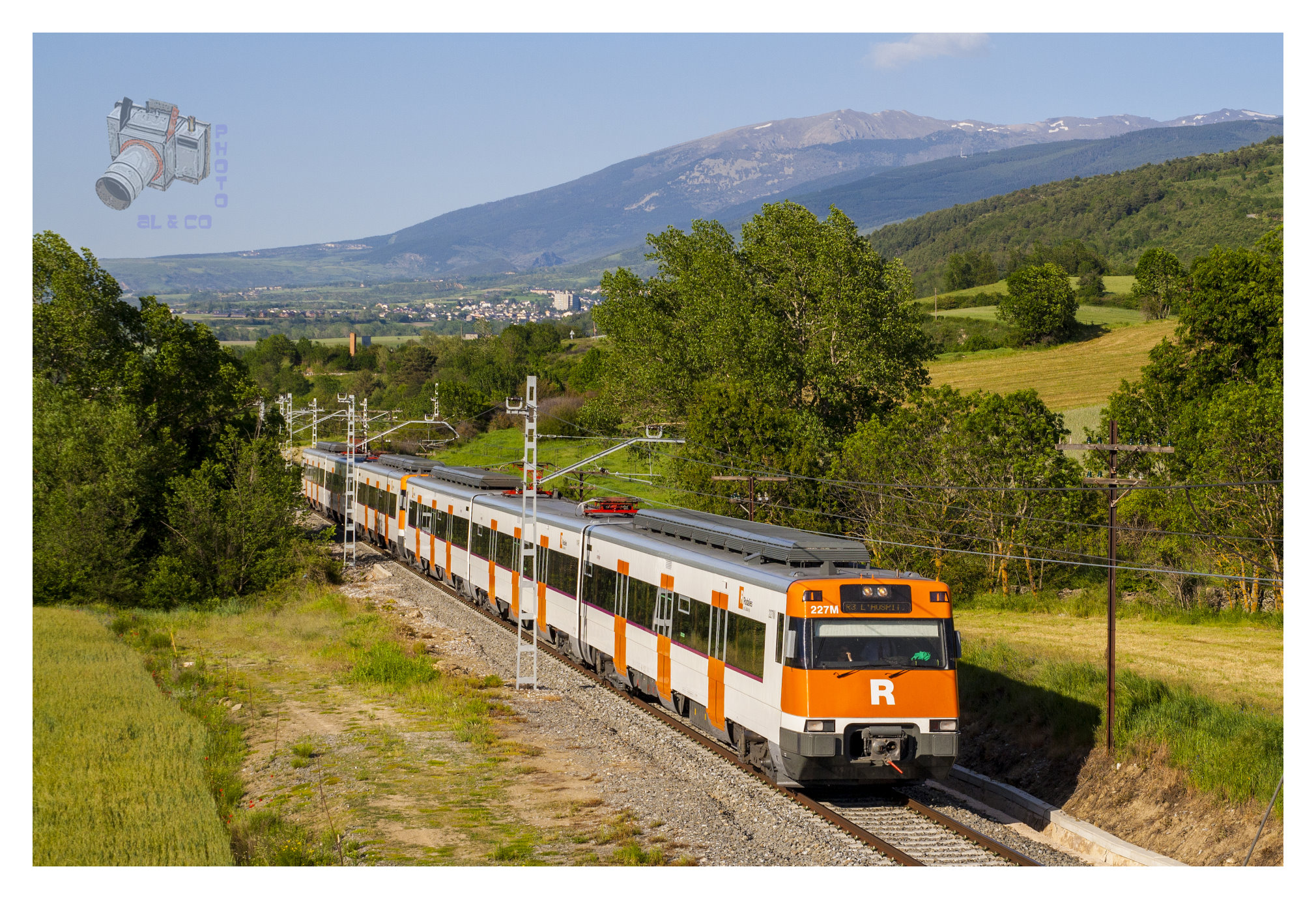

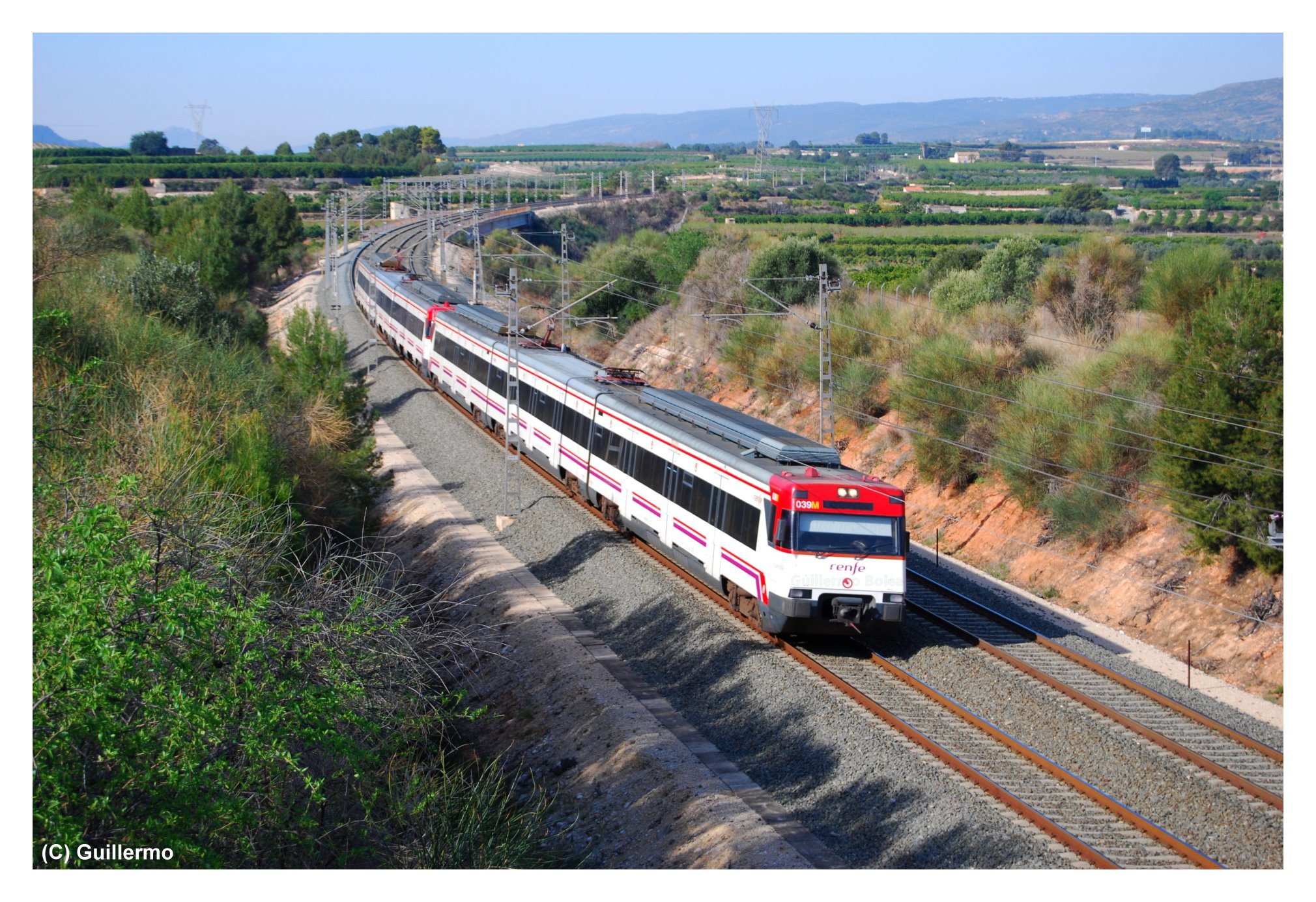

Xátiva - 446.020 - New Hornachuelos - 447.064 - New Queixans - New Fontanals de Cerdanya - New Puigcerdà - New

Technical Data

Builders:
Mechanical Parts: CAF
Electric Equipment::
Transmission:
Brake: Knorr

Traction:
Maximum Speed 100 km/h
Maximum Tractive Effort
Continuous Tractive Effort 127,8 kN
Continuous Tractive Effort (Speed) 64,7 km/h
Tractive Effort at Max. Speed


Specifications:
Locomotive Type
Nominal Power (Wheels) 2.400 kW
Wheel Arrangement Bo' Bo' + 2' 2' + Bo' Bo'
Wheel Diameter (new) 890 mm
Driving Cabs (Number) 2
Air Brake Compressed Air
Dynamic Brake Rheostatic and Regenerative
Sanders (number)
Dead Man's Switch
Multiple Working Up to 4
Wheel Flange Lubrification
Speed Recorder
Transmission Ratio

Electric and Traction Equipment
Traction Motors::
Type GEE 326 A2
Number 4 (x2)
Continuous Power 300 kW
One-Hour Power 330 kW
Tension 1.500 V d.c.
Continuous Intensity 218 A
One-Hour Intensity 240 A
Nominal Speed 1.450 r.p.m.
Maximum Speed 2.500 r.p.m.

Main Compressor Motor:
Number 1
Power 12 kW
Nominal Tension 380 V a.c.
Nominal Speed 1.450 r.p.m.

Auxiliary Compressor Motor:
Number 1
Power 1 kW
Nominal Tension 72 V d.c.
Nominal Speed 2.000 r.p.m.
Batteries:
Type Níckel-Cadmium
Nominal Tension 72 V cc
Number of Cells 55
Capacity 190 Ah

Battery Charger:
Number 1
Input Tension: 380 V a.c.
Output Tension: 72 V d.c.

Static Converter:
Number 2
Input Tension 3.000 V cc
Output Power 85 kVA
Output Tension 380 V c.a.
Output Frequency 50 Hz
Working Frequency 300 Hz
Input Resistance 150 Ω

Weight and Capacity
Weight: Car 1 Trailer Car 2 U.T.E.
Body 35.600 Kg 30.300 Kg 35.600 Kg 101.500 Kg
Bogies 25.600 Kg 13.900 Kg 25.600 Kg 65.100 Kg
Tare 61.200 Kg 44.200 Kg 61.200 Kg 166.600 Kg
Maximum Load 17.300 Kg 18.400 Kg 17.300 Kg 53.000 Kg
Maximum Weight 78.500 Kg 62.600 Kg 78.500 Kg 219.600 Kg

Capacity Car 1 Trailer Car 2 U.T.E.
Seating Capacity 66 70 66 202
Standing Capacity 171 180 171 522
Total 237 250 237 724
